The official and recommended power supply for Orange Pi 800, Orange Pi 4 LTS, Orange Pi 4B
Multiple circuit protection
Over-current protection
The green mode power supply shall be hiccupped when any output operating in overload condition(set@ Max load 110～160% ) under any line condition for an indefinite period of time. The power supply shall be self－recovery when the fault condition is removed.
Short Circuit Protection
The power supply shall be hiccupped and no damage shall occur when any output operating in a short circuit condition under any line condition for an indefinite period of time. The power supply shall be self－recovery when the fault condition is removed.
Professional certification for safety
The power supply has been certified by CE for use by overseas customersScope of application
-
Environmental Conditions：Ambient Temperature: 0℃~40℃ Relative Humidity: 10%~90%
-
Storage Conditions：Storage Temperature:－30℃～70℃ Relative Humidity: 10%~90%
Specifications
| Input Voltage Range | 90Vac to 264Vac |
| Rated Input Voltage | 100 Vac -240 Vac |
| Input Frequency Range | 47Hz -63Hz |
| Input Current | 0.8A max. (I/P100-240Vac) |
| Size | L76*W44*32mm |
| Weight | 125g |
| Cable length | 1.2m |

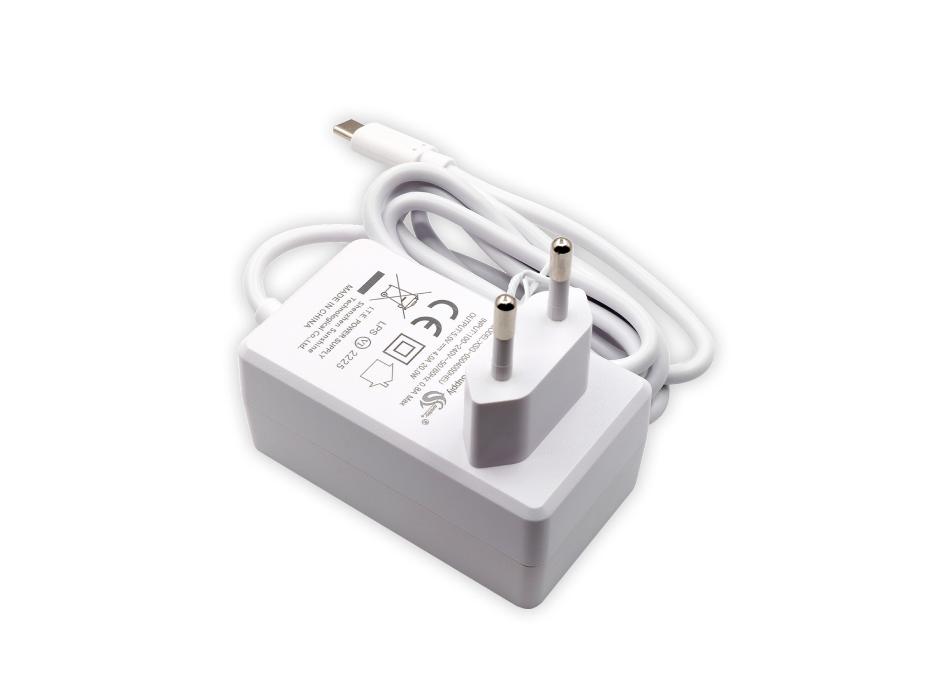

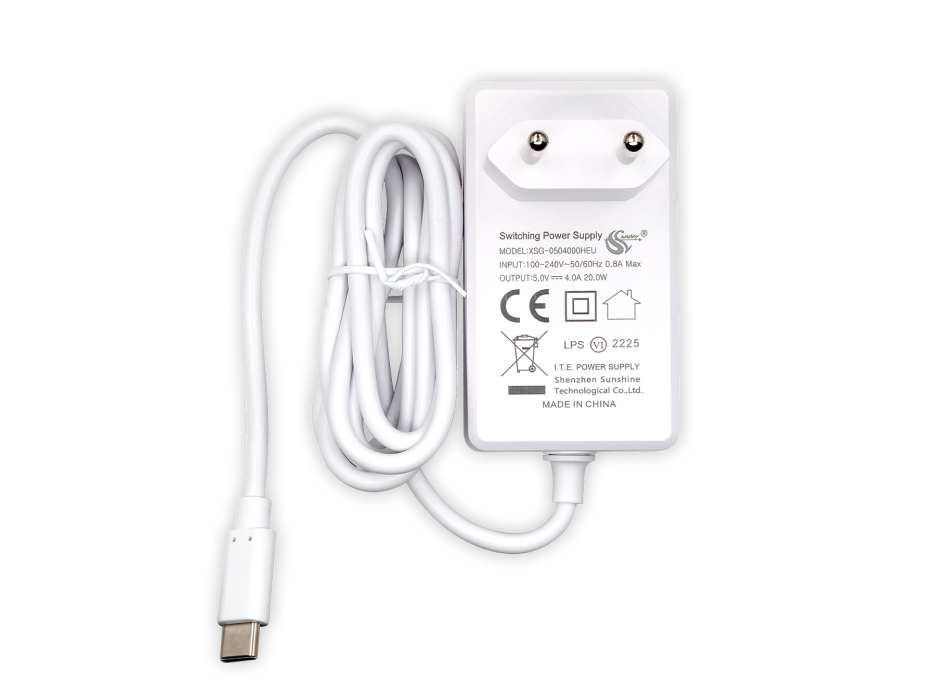

Product images
