1) First, you need to prepare the following accessories

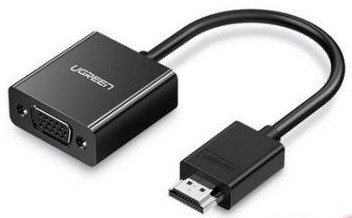

a. HDMI to VGA Converter

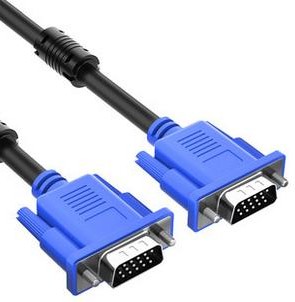

b. A VGA cable


c. A monitor or TV that supports VGA interface

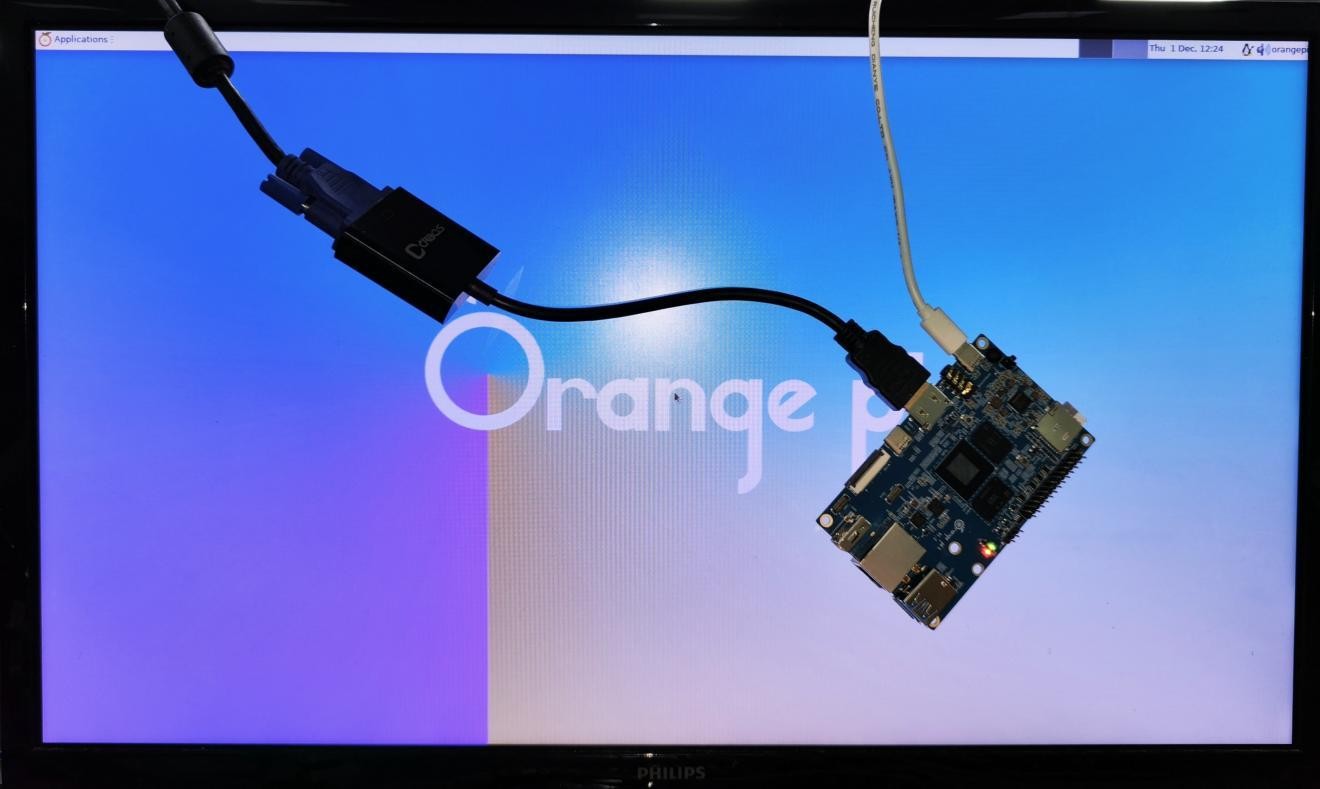

2) HDMI to VGA display test as shown below



When using HDMI to VGA display, the development board and the Linux system of the development board do not need to make any settings, only the HDMI interface of the development board can display normally. So if there is a problem with the test, please check whether there is a problem with the HDMI to VGA converter, VGA cable and monitor.
