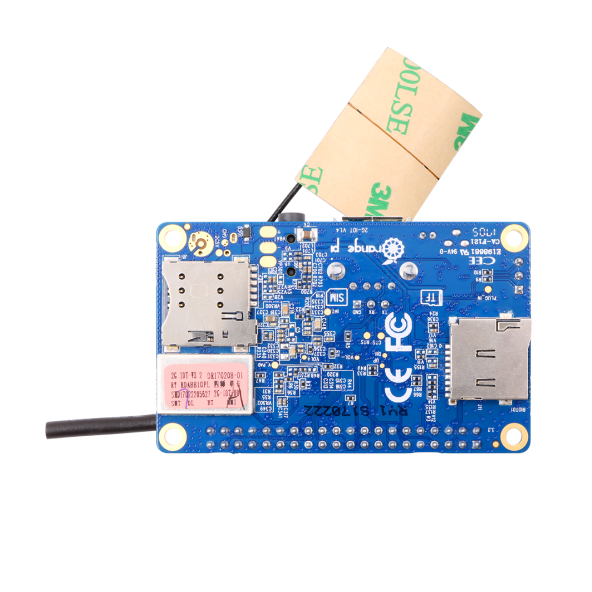

Orange Pi 2G-IoT

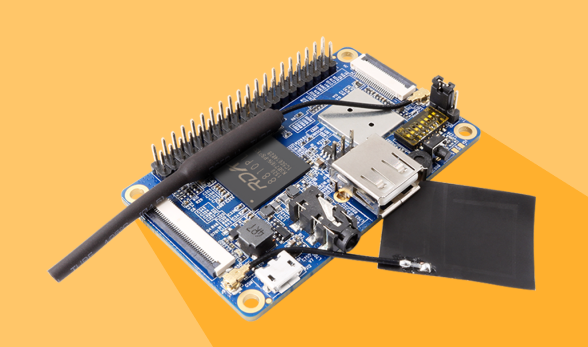

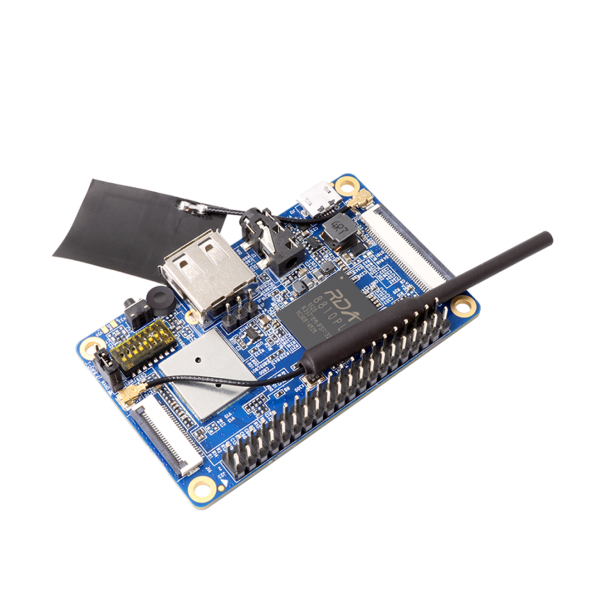

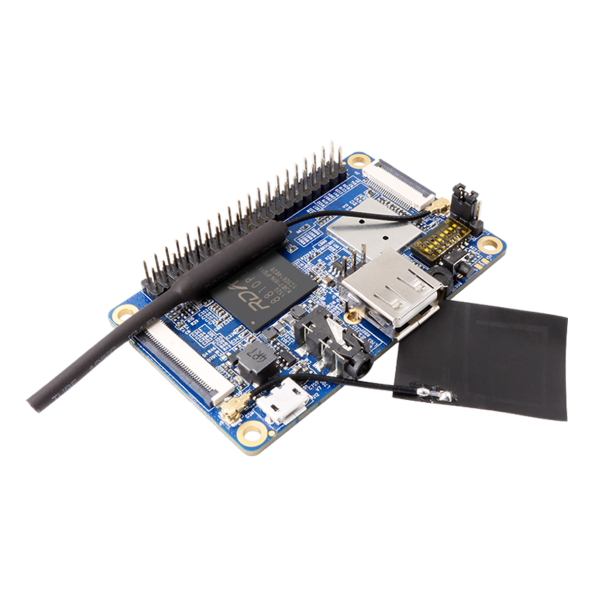

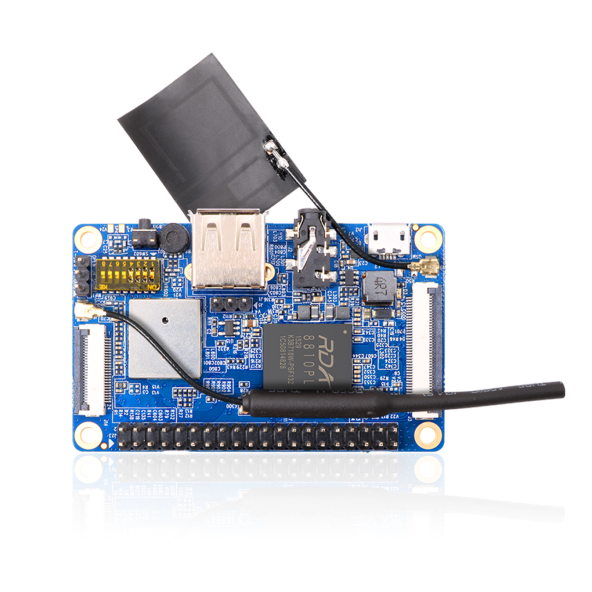

Orange Pi 2G-IoT is an open-source single-board computer with WiFi and Bluetooth. It is highly compact with a dimension of 67X42mm. It uses the RDA8810 Soc, and has 256MB LPDDR2 SDRAM. It can run Android 4.4, Ubuntu, Debian Image.

Product introduction

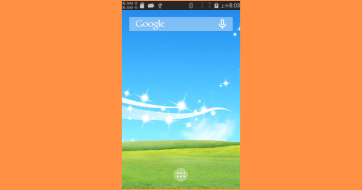

Multiple operating systems
USB 2.0
WiFi
TF card
Bluetooth
40pin headers
Powered through USB-OTG
CSI camera port

Orange Pi 2G-IoT uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 2G-IoT offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.

Orange Pi 2G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Enjoy wonderful network anytime and anywhere
Multiple functional interfaces

Integrates the popular HDMI, CSI camera port , USB-OTG,etc.

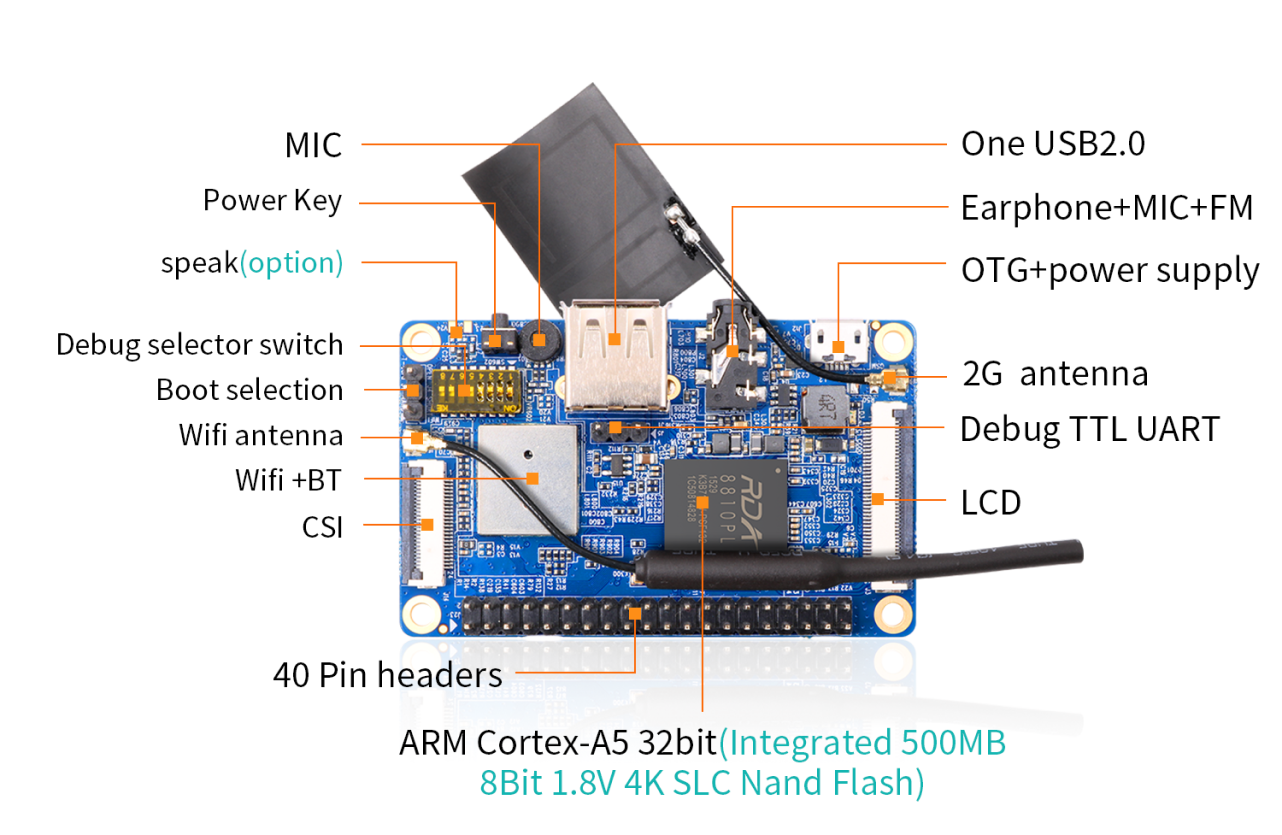

Hardware specification

CPU	ARM Cortex-A5 32bit
GPU	• Separate graphic processor, Vivante's GC860 • support OpenGLES1.1/2.0 • support OpenVG1.4 • support DirectFB • support GDI/DirecShow • 30M Triangle/s, 250M Pixel/s
Memory (SDRAM)	Integrated 256MB LPDDR2 SDRAM
Onboard Storage	TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash
Onboard WiFi+BT	RDA5991, WiFi+BT

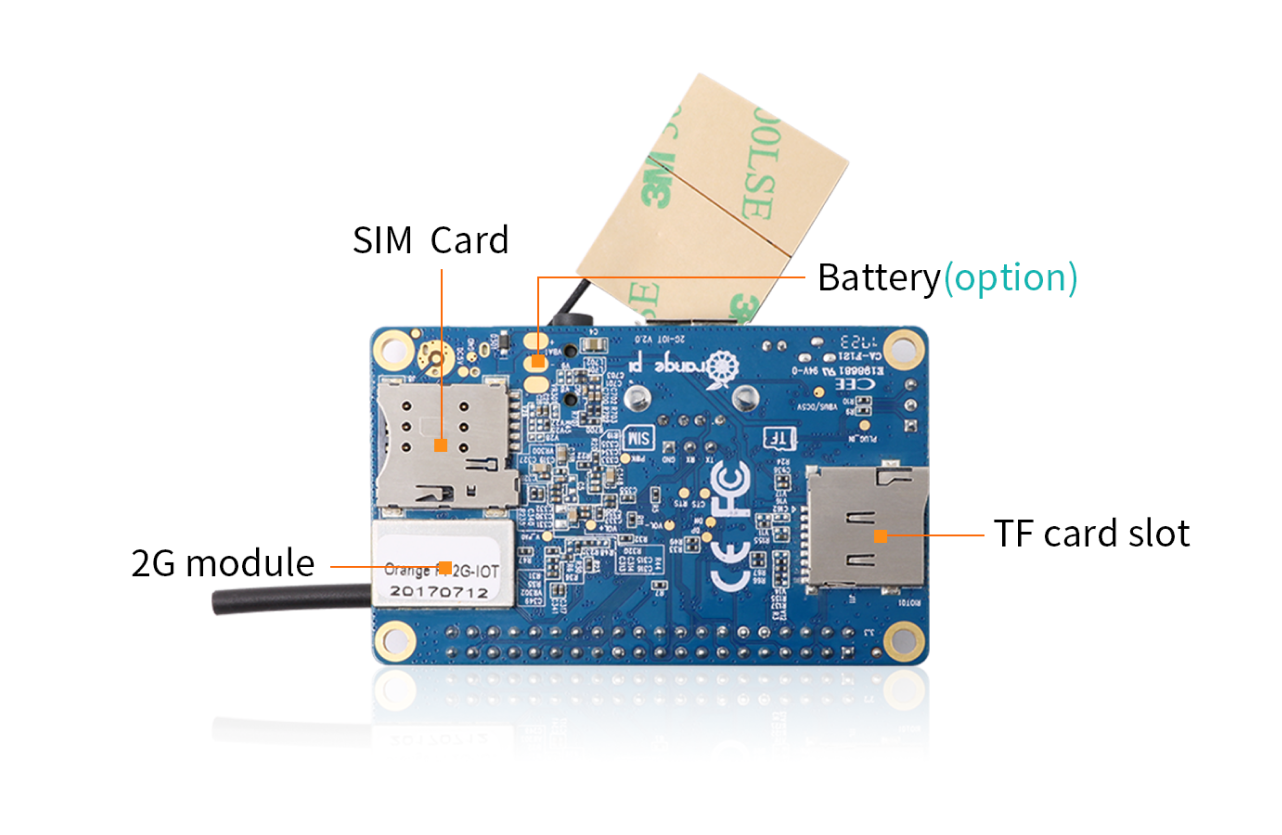

2G model	• The four frequency single card • GSM/GPRS Dedicated accelerators • SIM card
Video Input	• A CSI input connector Camera • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps
Audio Input	MIC, 3.5 mm Jack
Video Outputs	LCD
Audio Outputs	3.5 mm Jack, FM, SPEAK（Optional）
Power Source	• USB OTG can supply power • Battery input can supply power（Optional）
GPIO(1x3) pin	UART, Ground.
USB 2.0 Ports	One USB 2.0 HOST, One USB 2.0 OTG
Buttons	Power Button(SW602)

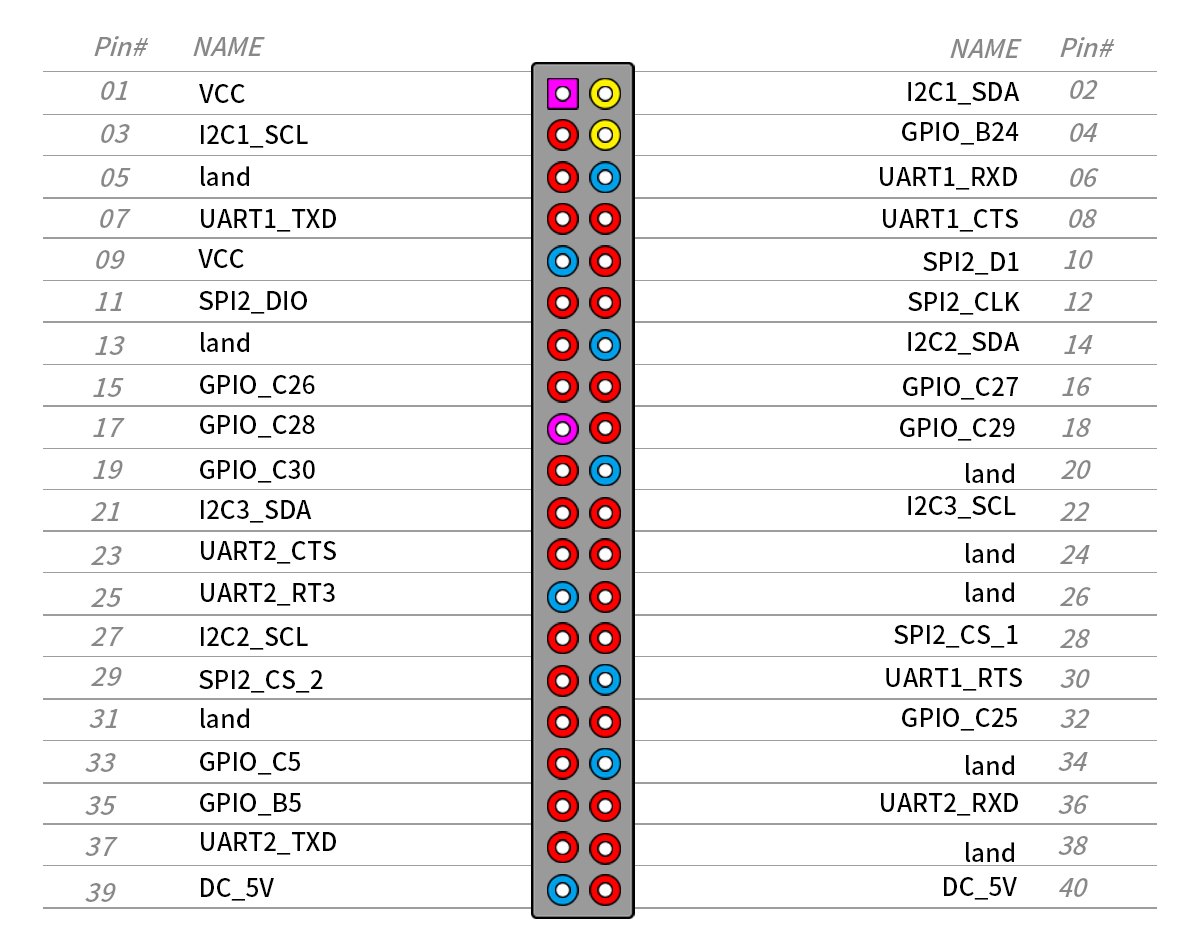

Low-level peripherals	40 Pins Header
LED	Power led
Supported OS	Android, Ubuntu, Debian Image
