Orange Pi 4 is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 56X91mm.

Product introduction

USB3.0/USB2.0 interface
TF Card slot
WiFi
Type-C interface
Bluetooth
CSI camera port
HDMI output
4GB LPDDR4 SDRAM
16GB EMMC Flash
Gigabit Ethernet port
Rockchip RK3399
40pin headers
Multiple operating systems
main frequency speeds up to 1.8GHz
Powered through DC

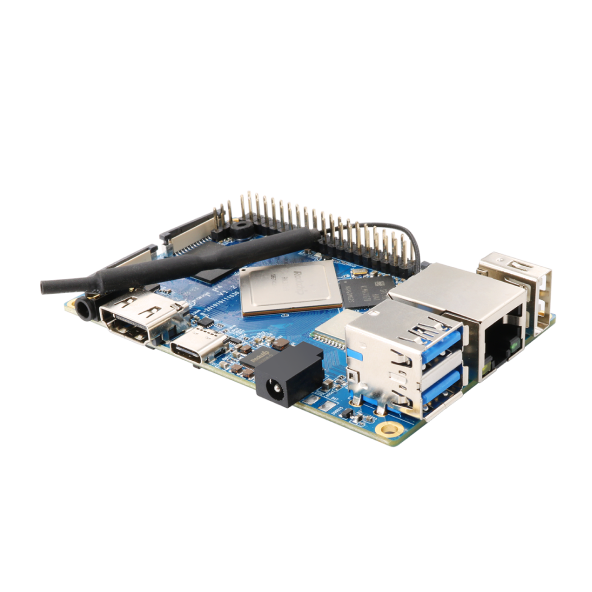

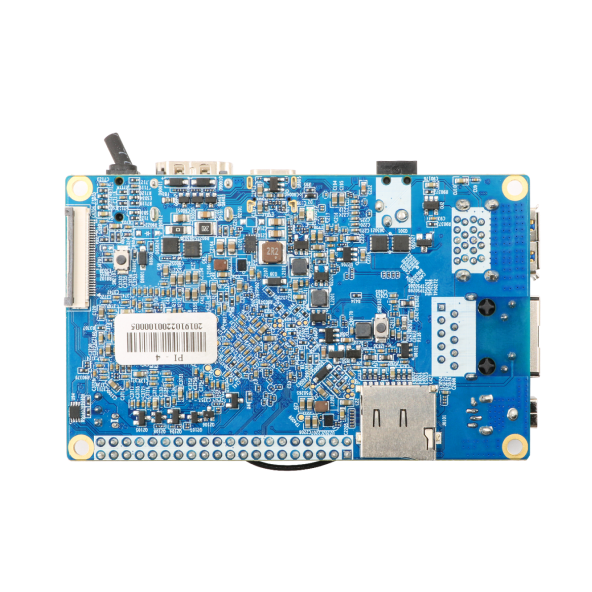

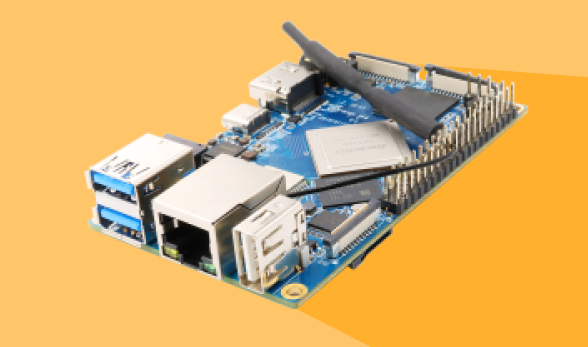

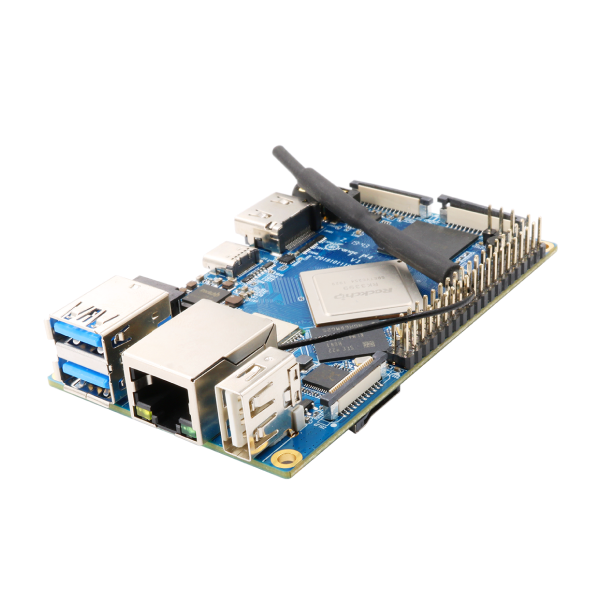

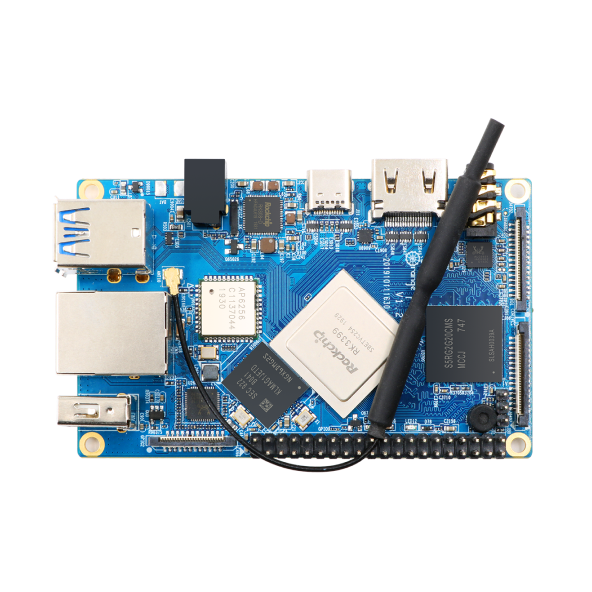

Orange Pi 4 uses the Rockchip RK3399 with 6-core ARM® 64-bit processor,main frequency speeds up to 1.8GHz, and has 4GB LPDDR4 SDRAM with 16GB EMMC Flash（option）. It can run Android 8.1,Ubuntu 16.04,Ubuntu 18.04,Debian 9 image. Orange Pi 4 offers a range of different ports, including HDMI output, CSI camera port ,40pin headers, Gigabit Ethernet port, USB 3.0, PCIE connector etc. It is powered through DC and Type-C. It is a good choice for applications that need strong networking perfomance.

Orange Pi 4 is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Dual-band wireless WiFi+Bluetooth 5.0, enjoy wonderful network anytime and anywhere
Rich ports with powerful performance

MIPI-CSI camera interface, USB Type-C port, HDMI 2.0 port，etc.

USB 3.0

Orange Pi 4 has upgraded USB capacity: along with USB 2.0 ports，you'll find two USB 3.0 ports, which can transfer data up to ten times faster.

16GB EMMC Flash

An optional 16GB EMMC Flash to meet users' higher demand for storage capacity

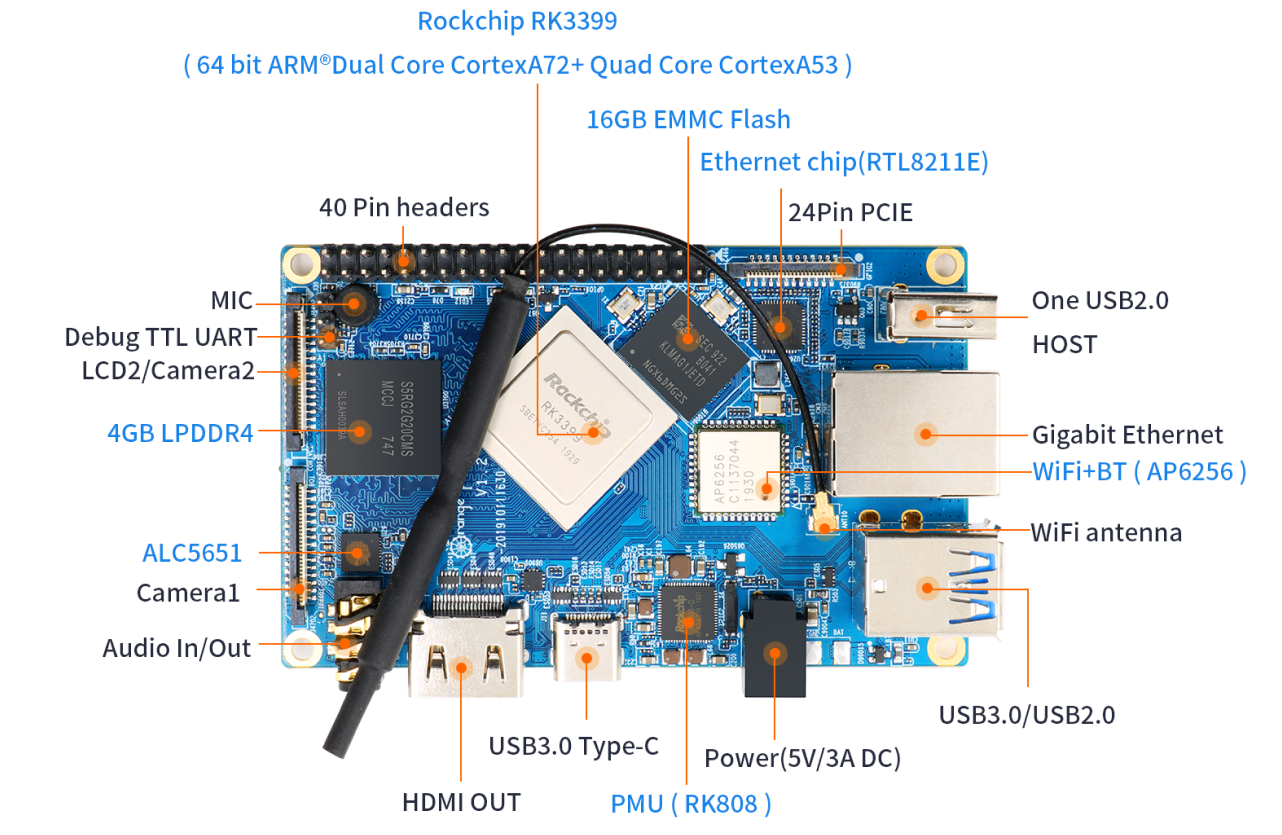

Hardware specification

CPU	• Rockchip RK3399 (28nm HKMG process) • 6-core ARM® 64-bit processor ,main frequency speeds up to 2.0GHz • Based on the large and small size core architecture of big.LITTLE: • Dual-core Cortex-A72 (large core) + Quad-core Cortex-A53 (small core)
GPU	• Mali-T864 GPU • Supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1,OpenCL, DX11, support for AFBC
PMU	RK808 PMU
Memory+Onboard Storage	• Dual 4GB LPDDR4 + 16GB EMMC Flash • Dual 4GB LPDDR4 +EMMC Flash(Default Empty)
On-board WiFi+Bluetooth	AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0
Network	10/100/1000Mbps Ethernet( Realtek RTL8211E )
Audio	• Output: 3.5mm Jack and HDMI2.0a • Input: MIC
Video Outputs	• 1 x HDMI 2.0 ( Type-A ), Supports 4K@60fps output • 1 x DP 1.2 (Display Port) , Supports 4K@60fps output • Supports Dual MIPI-DSI （4 lines per channel）
Camera	2 x MIPI-CSI Camera connector (MIPI_RX0、MIPI_TX1/RX1)
USB	2 x USB2.0 HOST，1x USB3.0 HOST, 1 x USB3.0 Type-C
RTC	Support RTC, on-board battery backup interface
Debug UART	3 pins Debug UART
GPIO	• GPIO1 40 pins（1 x I2S、2 x I2C、1 x SPI/UART、8 x GPIO） • GPIO2 24pin PCIE port
Key	Upgrade Key & Reset Key
Power Source	DC 5V/3A TYPE-C 5V/3A
LED	Power led & Status led

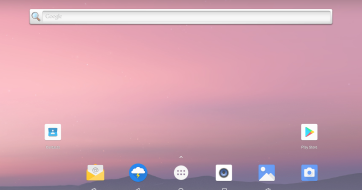

OS Support	Android 8.1, Ubuntu 16.04, Ubuntu 18.04, Debian 9
PCB	8 Layer

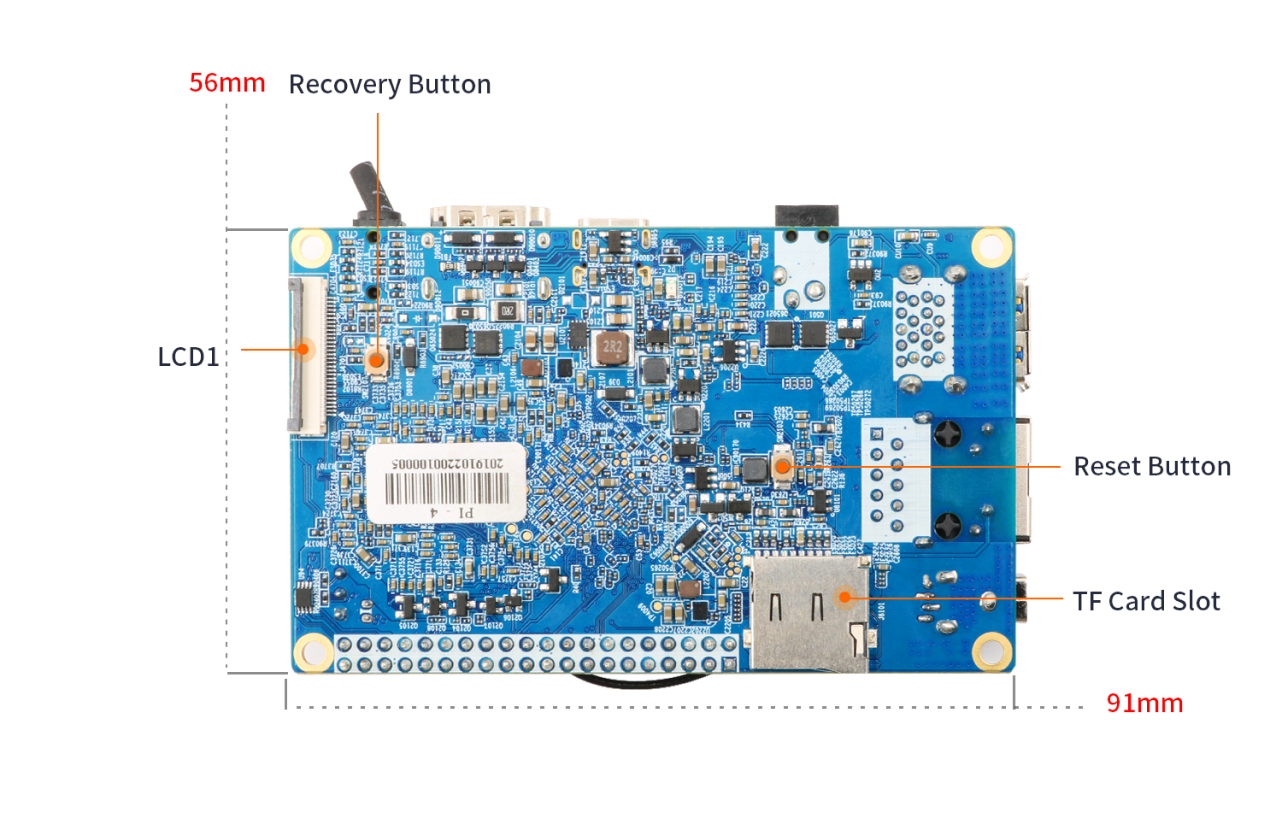

Dimension	91mm*55.7mm
Weight	48g
