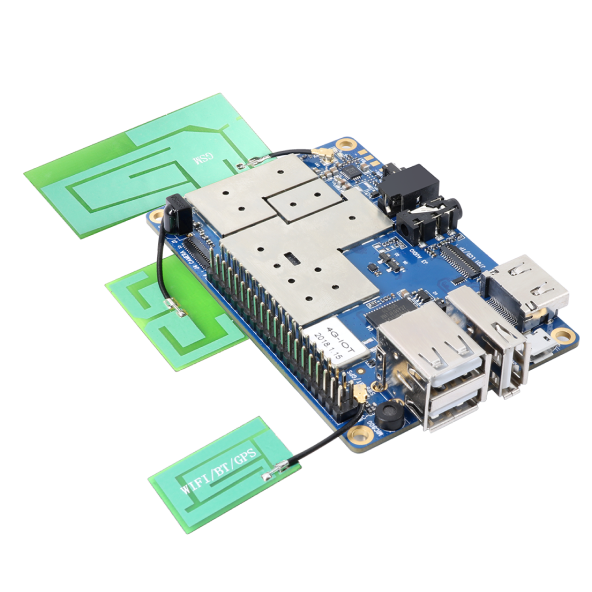

Orange Pi 4G-IoT

Orange Pi 4G-IoT is an open-source single-board computer with WiFi and Bluetooth. It is highly compact with a dimension of 55X85mm.

Product introduction

WiFi
Bluetooth
TF card
1GB DDR3 SDRAM
8GB EMMC Flash
main frequency up to 1.25GHz
HDMI output
40pin headers
USB 2.0
CSI camera port
Cortex-A53
Android 6.0 Image

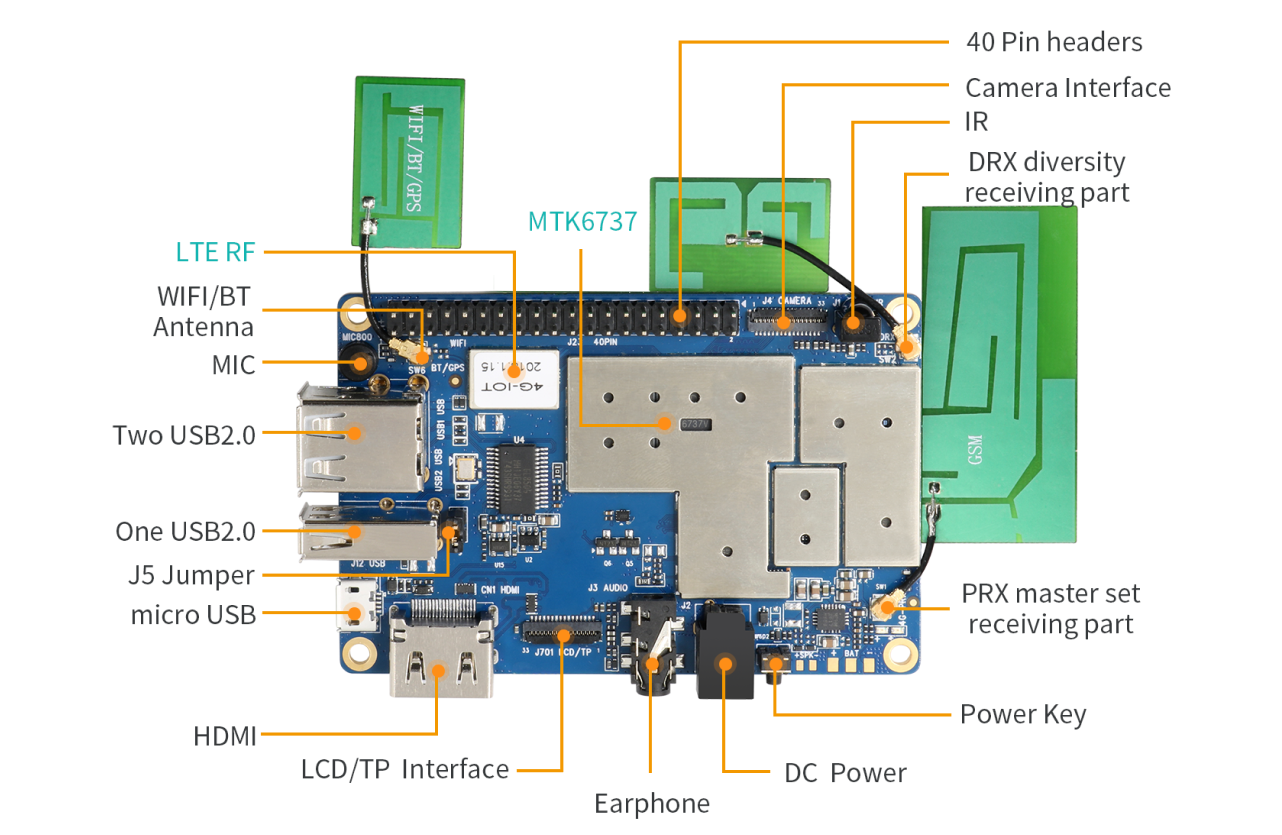

Orange Pi 4G-IoT use the MTK serial of MT6737 SoC with Quad core ARM® Cortex-A53, main frequency up to 1.25GHz, and has 1GB DDR3 SDRAM with 8GB EMMC Flash. It offers a range of different ports, including HDMI output, 40pin headers, USB 2.0, CSI camera port, TF card slot, etc. It can run Android 6.0 Image. Orange Pi 4G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Orange Pi 4G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Enjoy wonderful network anytime and anywhere
Multiple functional interfaces

Integrates the popular HDMI, CSI camera port , USB-OTG,etc.

8GB EMMC Flash

8GB EMMC Flash to meet users' higher demand for storage capacity

Hardware specification

Processor	MT6737
CPU	Quad core ARM® Cortex-A53, Main frequency up to 1.25GHz
GPU	ARM Mali-T720 MP1
Memory	1GB DDR3
Emmc	8GB EMMC Flash
Wireless	WiFi / BT / FM / GPS Four in one
Radio frequency	• GSM: 900/1800 (850/1900 optional) • WCDMA: B1/B8 (B2/B4/B5 optional) • TD-CDMA • CDMA2000 • FDD-LTE: B1/B3/B7/B20 (B2/B4/B17optional) • TDD-LTE: B38/40/41B
Display	HD
Capacitance touch	Support
Camera	13M （25pin ZIF Connector）
Accelerometer Sensor	Support
IR Control	Support (Adapted iDroid remote controller)
Fingerprint Identification	Support
SIM Card	mini Single SIM Card
TF Card	Support hot-plugging
Audio	• Earphone: For audio input / output • Mic: For audio input
USB	• USB Host × 3: Support OTG • Micro USB × 1: Only for writing image
LED	• Power Indicator LED:Red • Status Indicator LED: Green
Key	Power
HDMI	Support

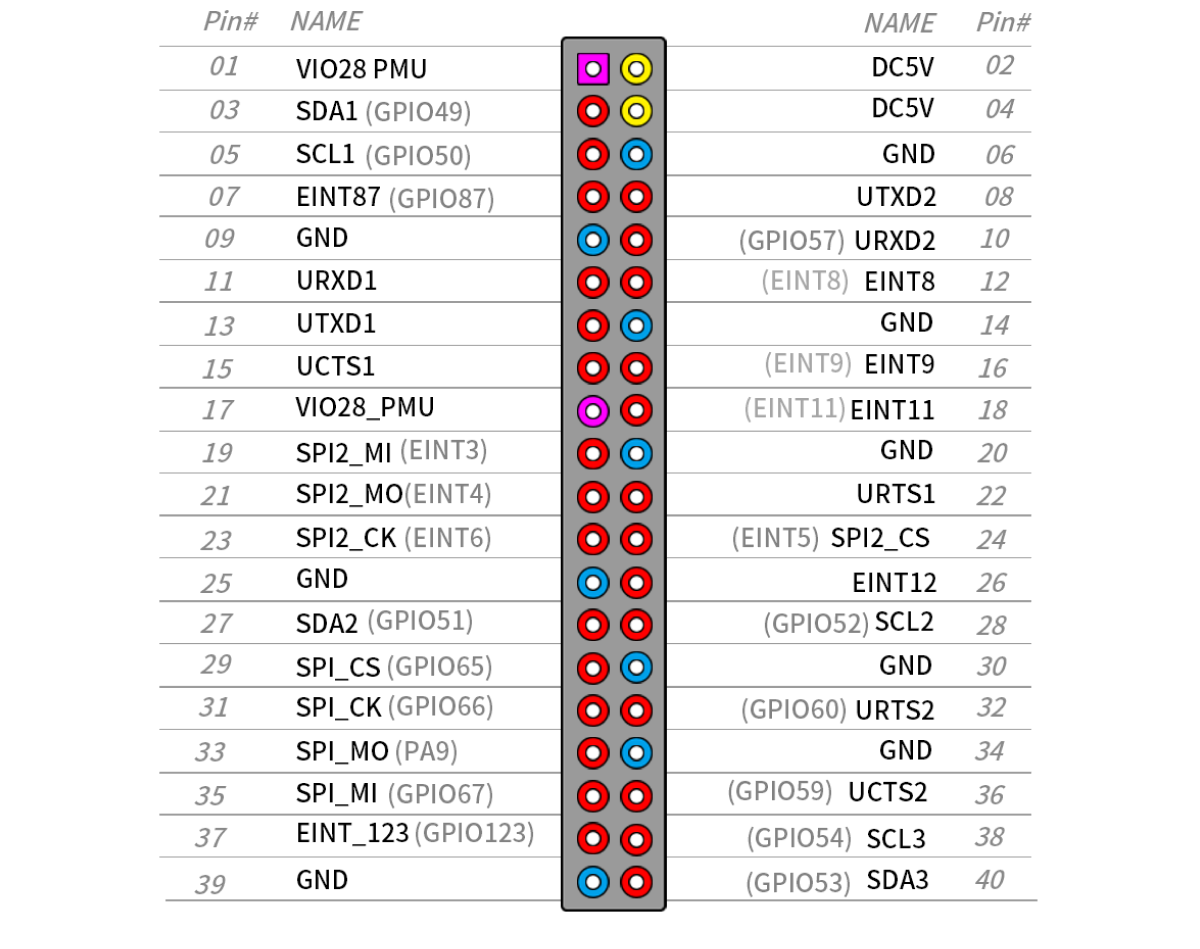

Low-level peripherals	40pin Headers: 1.8V, SPI × 2 , I2C × 3, UART × 2
Power	• DC : 5V 2A • Battery:Connection through a weld plate
OS	Android 6.0
Programming support	C、C++、Kotlin、Java、Shell、Pyhon
