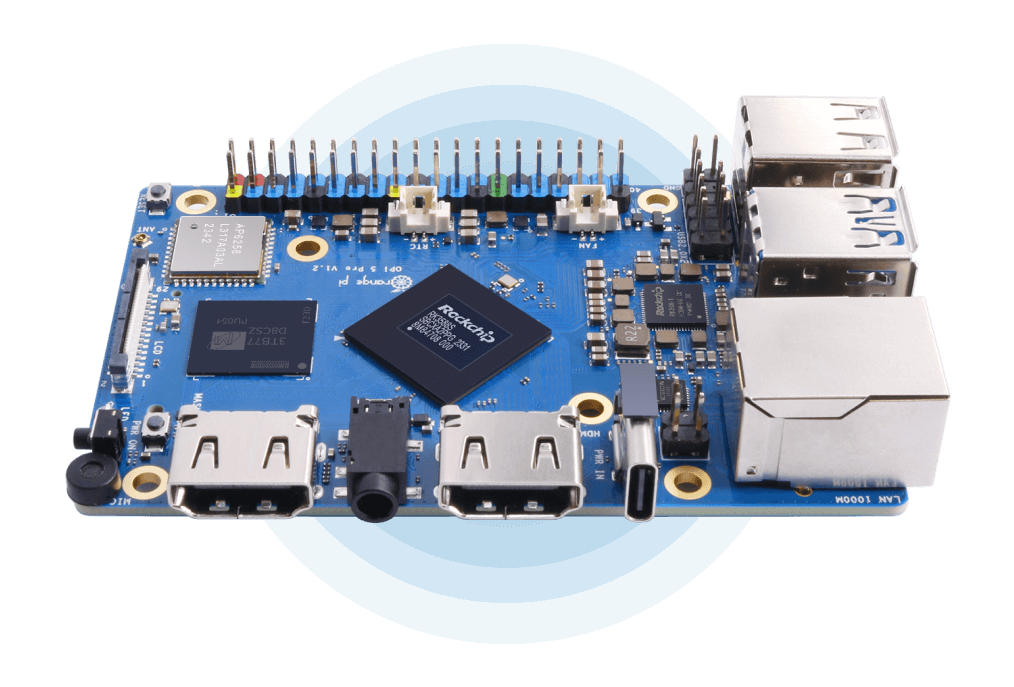

Orange Pi 5 Pro

Smaller, Faster, Smoother

Rockchip RK3588S 8-core 64-bit processor

Main frequency up to 2.4GHz

LPDDR5: 4GB/8GB/16GB (optional)

Wi-Fi 5 + BT5.0 with BLE support

M.2 M-KEY slot: NVMe SSD or SATA SSD

Supports eMMC module or SPI Flash (either one)

USB2.0 & USB3.1

HDMI2.1 & HDMI2.0 outputs

Gigabit Ethernet with PoE+ support (PoE+ HAT required)

Type-C power supply

Orange Pi 5 Pro uses Rockchip RK3588S 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2; embedded NPU supports INT4/INT8/INT16 mixed computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most end devices; with 4GB/8GB/16GB LPDDR5, with up to 8K display processing, and supports for eMMC module or SPI Flash (either one),Wi-Fi5, BT5.0, and BLE support.
The Orange Pi 5 Pro provides abundant interfaces, including HDMI output, GPIO ports, USB2.0, USB3.1, 3.5mm headphone socket,Gigabit LAN port with PoE+ support (PoE+ HAT required), etc., with an M.2 M-key slot that supports the installation of NVMe SSD or SATA SSD.
Orange Pi 5 Pro is compact, measuring only 89mmX56mmX1.6mm, and powerful enough to be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.Orange Pi 5 Pro supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Ubuntu, Android 12, Debian and other operating systems.

Rockchip RK3588S

Embedded with 6 TOPS computing power NPU, suitable for developing AI applications

Using 8nm LP process for faster speed and better performance

CPU8-core 64 core architecture, 4-coreCortex-A76 + 4-coreCortex-A55

4X
Improvement

RK3588S

RK3399

GPUARM Mali-G610

8X
Improvement

RK3588S

RK3399

NPU6TOPS AI computing power

Supports INT4/INT8/INT16/FP16 mixed computing, empowering various AI scenarios

4GB/8GB/16GB LPDDR5，faster and smoother

LPDDR 5 brings higher data rates and lower power consumption to better meet the demands of large applications and complex 3D games.

32GB

64GB

256GB

8K video decoding for clear and realistic picture

With support for up to 8K@60Hz, the powerful video codec allows for clearer images and more detailed picture quality.

High-quality and smooth gaming experience

8-core CPU + 8nm process + 8K video decoding for a smoother, more stable gaming experience

Gigabit Ethernet with PoE+ support

(PoE+ HAT required)

Power over Ethernet (PoE) can be widely used in factory automation, building automation and other scenarios, using more economical and efficient.

Equipped with M.2 M-Key slot to expand massive capacity

Equipped with M.2 M-Key slot, it supports access to NVMe SSD or SATA SSD to increase massive data storage space and meet the needs of fast read/write and high-capacity storage.

Wi-Fi5+ BT5.0 with BLE support

Built-in 2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0 with BLE support for stronger and more stable signals and easier and faster network transmission.

Rich display ports

Supports HDMI 2.1 8K video output, HDMI2.0 4K video output, MIPI DSI video output, suitable for high-end applications such as VR camera and depth vision.

Supports Orange Pi OS (Droid)

With its self-designed Launcher, it provides users with the same operating habits as a regular computer to the maximum extent. The installation of Google Store allows users to run Facebook, Instagram, Twitter, YouTube, Telegram and other applications smoothly.

Wide range of application scenarios

It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.

Artificial intelligence

Tablets

Edge computing

Cloud computing

AR/VR

Intelligent security

Smart home and other fields

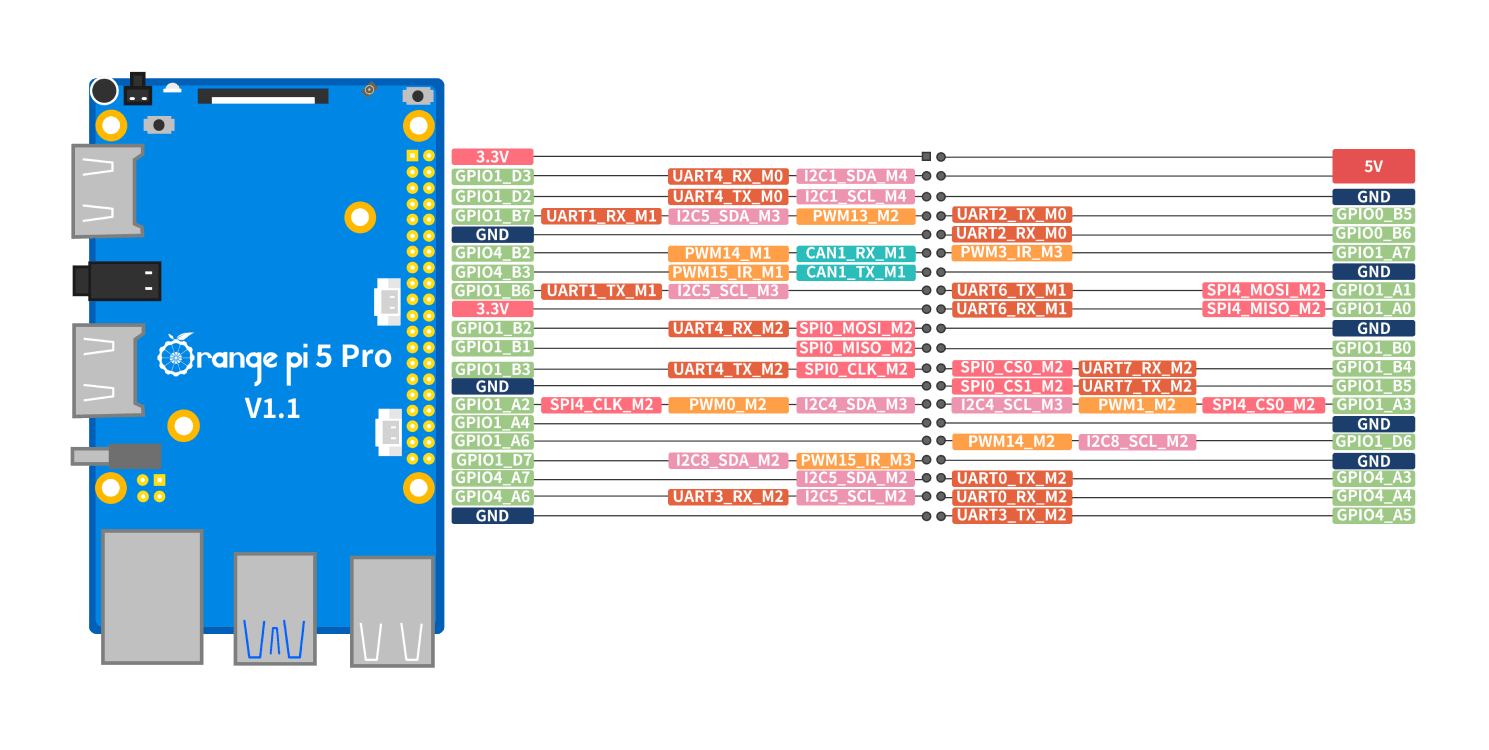

Orange Pi 5 Pro V1.2 Pin Definition

Product display

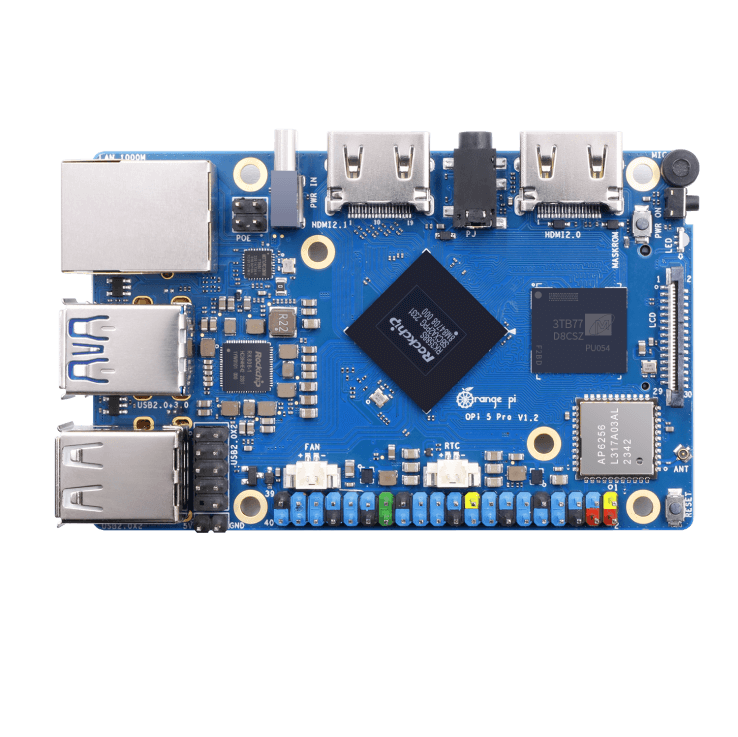

Top View

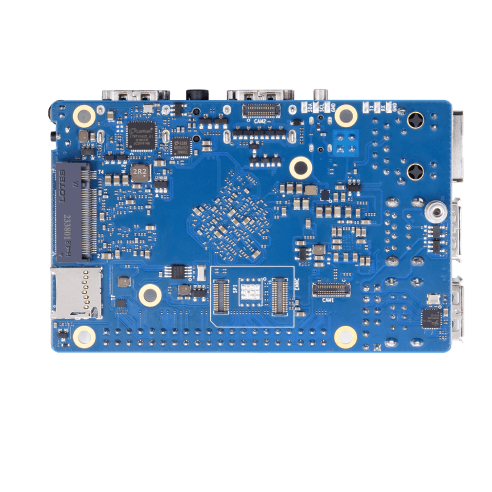

Bottom View

Hardware Parameters

SOC	Master Chip	Rockchip RK3588S (8nm LP process)
	CPU	• 8-core 64-bit processor •big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GHz, and little core cluster is 1.8GHz frequency.
	GPU	• Arm Mali-G610 • Built-in 3D GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
	NPU	Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU		RK806-1
RAM		LPDDR5 496PIN：4GB/8GB/16GB (optional)
Memory		• eMMC socket: supports eMMC module (optional) • SPI Flash (default empty) Note:either eMMC socket or on-board SPI Flash is preferred. • MicroSD (TF) slot • M.2 M-KEY slot: NVMe SSD or SATA SSD
USB		USB3.1 Gen1 * 1;USB2.0 1； USB HUB:USB2.0 2（TYPE A）+UAB2.0*2 row of pins
Video Output		• HDMI2.1 up to 8K @60Hz • HDMI2.0, up to 4K @60Hz • MIPI DSI 4 Lane, up to 4K @60Hz
Camera		2*MIPI 4 Lane
Audio		CODEC: ES8388 • 3.5mm headphone jack audio input/output • Input: onboard MIC • HDMI 2.1 eARC
Ethernet		10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module		Onboard Wi-Fi5+BT 5.0/BLE module: AP6256
PCIe M.2 M-KEY Socket		M.2 M-Key slot supports access to NVMe SSD or SATA SSD
Expansion Port		• Dual-row pin: 2.54mm 40Pin • Supports DC 5V and 3.3V power outputs • Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button		1* MaskROM, 1RESET, 1 POWER
Power Source		Supports Type-C power supply, 5V @ 5A
LED		RGB LED tri-color indicator
FAN		5V 2PIN 1.25mm socket
RTC		3V 2PIN 1.25mm socket
Debugging		Debug serial port UART included in 40PIN expansion port
Supported OS		Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12

Appearance Specification Introduction

Dimension		89mm56mm1.6mm
Weight		62g

Product display

Front
Back

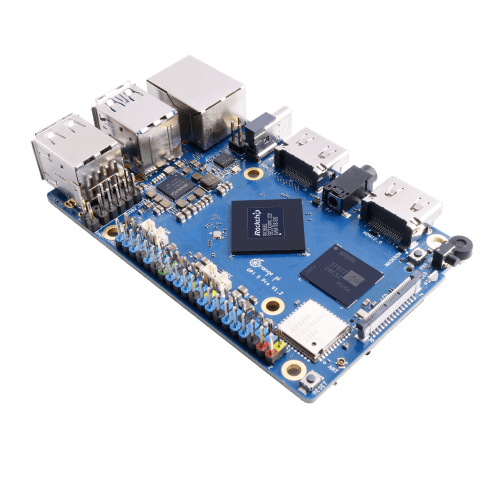

45° angle

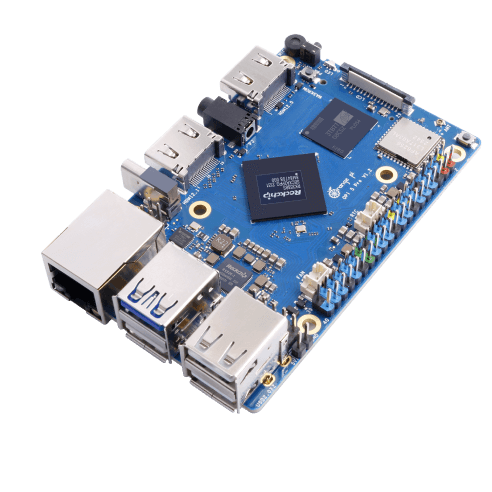

45° angle
