OrangePi CM5 base board is an official OrangePi base board that can be used with Orange Pi CM5 core board. It has two 2.5G high-speed LAN ports, one Gigabit LAN port, four camera ports, and standard CM5 connectors, and can be used as a CM5 development system as well as embedded boards to be integrated into end-products.

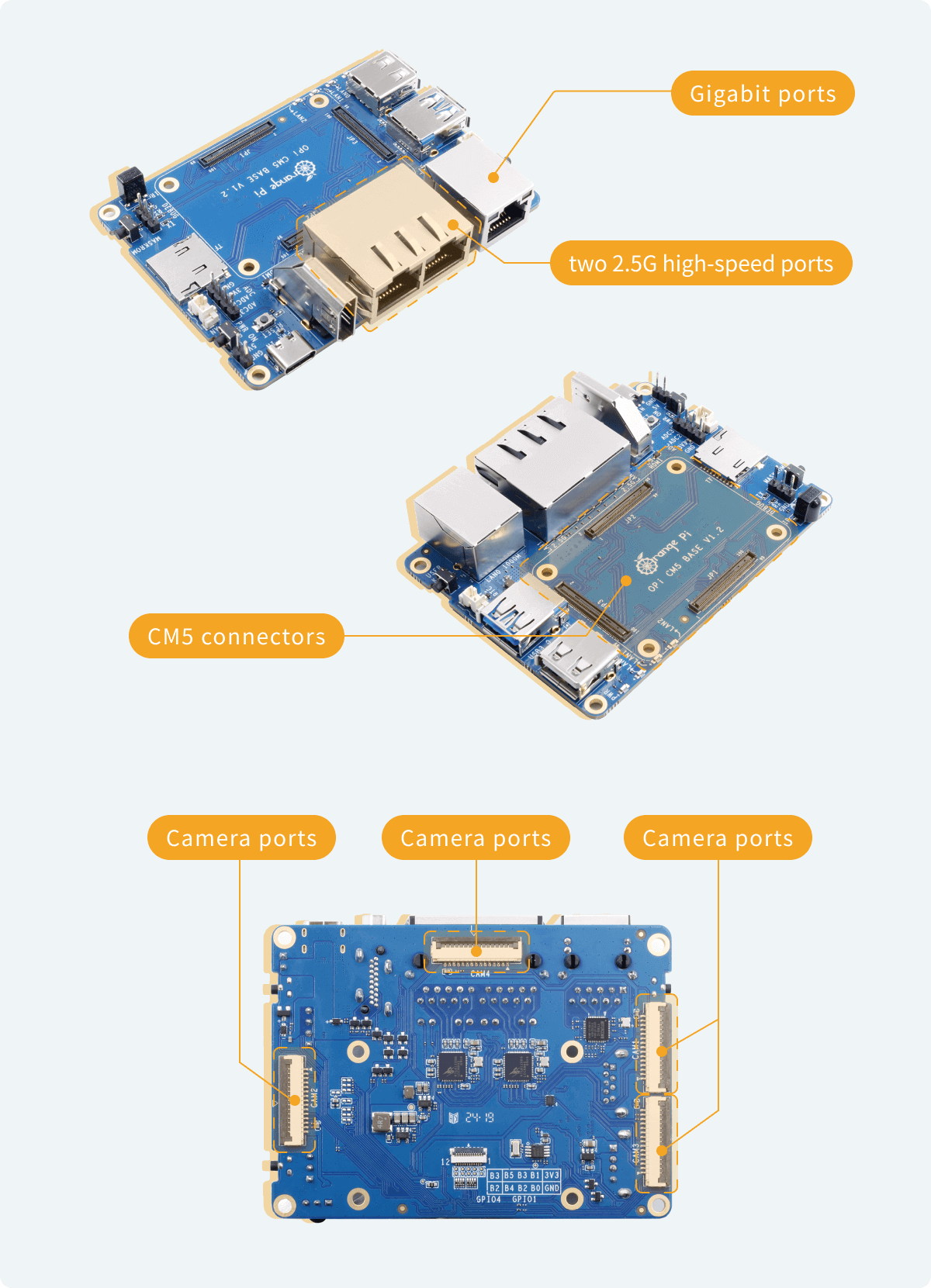

Product display

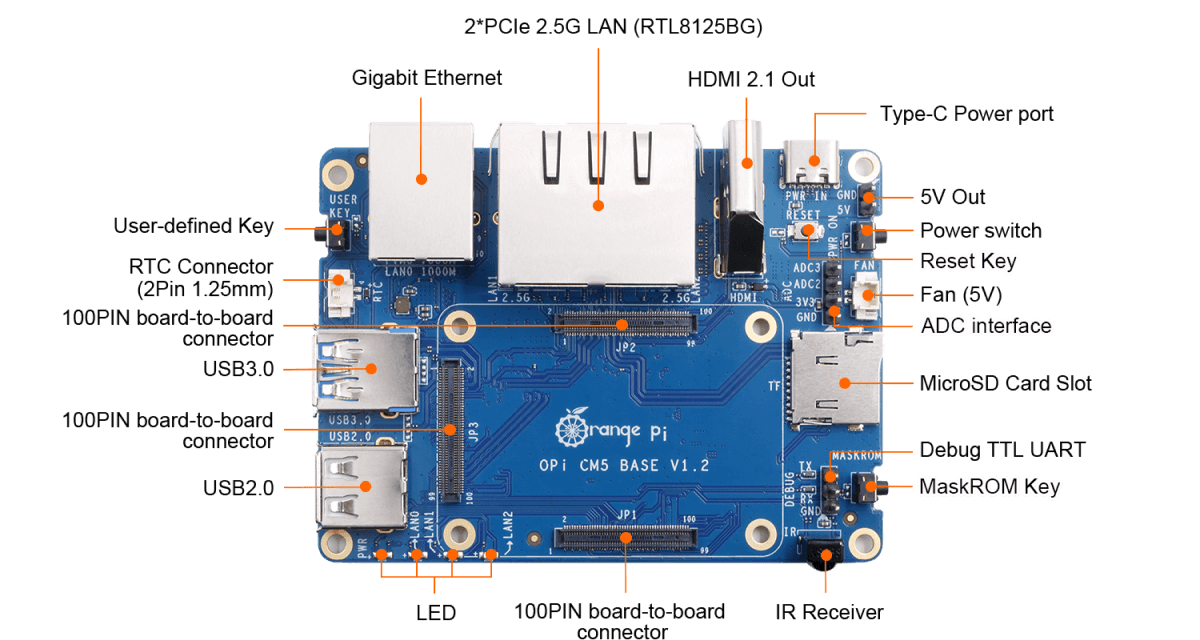

Top View

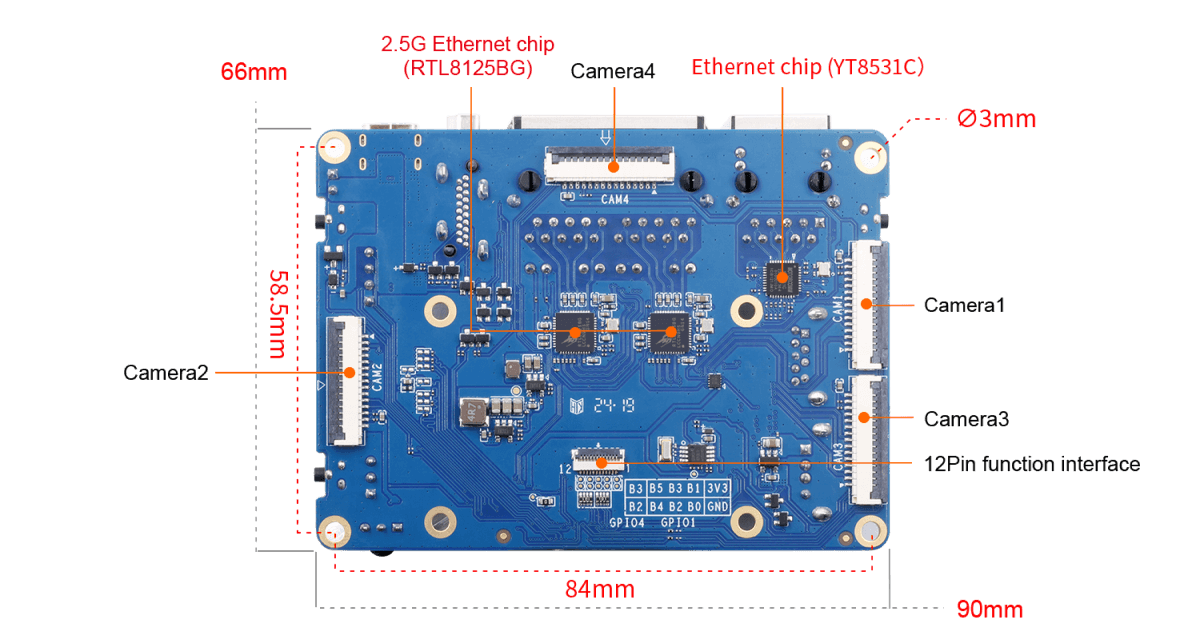

Bottom View

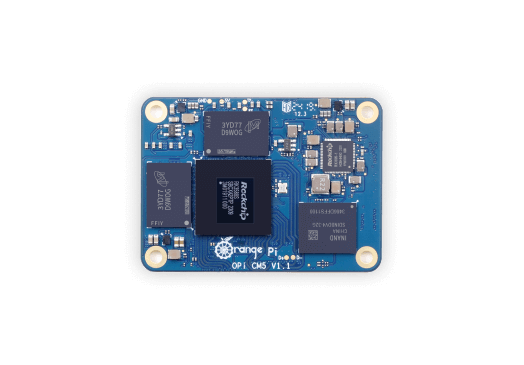

OrangePi CM5
Compact and Powerful Industrial PC
OrangePi CM5 is powered by the Rockchip RK3588S 8-core 64-bit processor with 4
Cortex-A76 (2.4GHz) and 4 Cortex-A55 (1.8GHz).
More info
Hardware Parameters
| Board-to-board connector | 3*100pin, 0.4mm pin Pitch, connector model: df40c-100ds-0.4v |
| Memory | MicroSD (TF) card |
| USB |
• 1*USB3.0(Host or Device mode supported) • 1*USB2.0 |
| Video output | HDMI 2.1 with up to 8K @60Hz support |
| Camera | 4*MIPI 2-lane |
| Ethernet PHY | • 1*10/100/1000M(YT8531C) • 2*2.5G(RTL8125BG) |
| Infrared receiver | Remote infrared receiver |
| ADC | Reserved for two 12Bit ADC inputs, maximum 1.8V inputs |
| RTC | 2pin connector with 1.25mm pitch |
| FAN | Connect DC 5V fan, 2pin vertical socket, Pitch:1.25mm |
| Expansion port | • 12pin FPC socket • Supports 3.3V 500mA power output • Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces |
| Button | Power on/off key, MASKROM key, user-defined key, reset key |
| Power supply | Type-C,5V @ 5A |
| LED | 1* red (POWER), 3* green (WAN, LAN1, LAN2) |
| Debugging | 3pin debug serial port (UART) |
| Supported OS | Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12 |
| PCB | Length: 90mm, width: 66mm, thickness: 1.6mm |
| Weight | 57.5g |
