Orange Pi One is an open-source single-board computer. It is highly compact with a dimension of 69X48mm. It can run Android 4.4, Ubuntu, Debian Image.
Product introduction
-
Powered through DC -
HDMI output -
CSI camera port -
TF card -
USB2.0 -
40pin headers -
100 Ethernet network -
Multiple operating systems
Orange Pi One uses the AllWinner H2 SoC, with Quad-core 32-bit Cortex-A7 and 256MB/512MB DDR3 (shared with GPU). It integrates USB 2.0 port, TF card slot, 26 pin headers etc. It is powered through USB OTG.
Orange Pi One is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU |
• Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 512MB/1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 32GB) / MMC card slot |
| Onboard Network | 10/100M Ethernet RJ45 |
| Video Input | • A CSI input connector Camera: • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
| Video Outputs | • Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function • Supports simultaneous output of HDMI |
| Power Source | DC input can supply power, but USB OTG input don’t supply power |
| USB 2.0 Ports | Only One USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW4) |
| Low-level peripherals | 40 Pins Header |
| LED | Power led & Status led |
| Key | POWER |
| Supported OS | Android Ubuntu, Debian Image |
Interface definition
| Product size | 69 mm × 48mm |
| Weight | 36g |

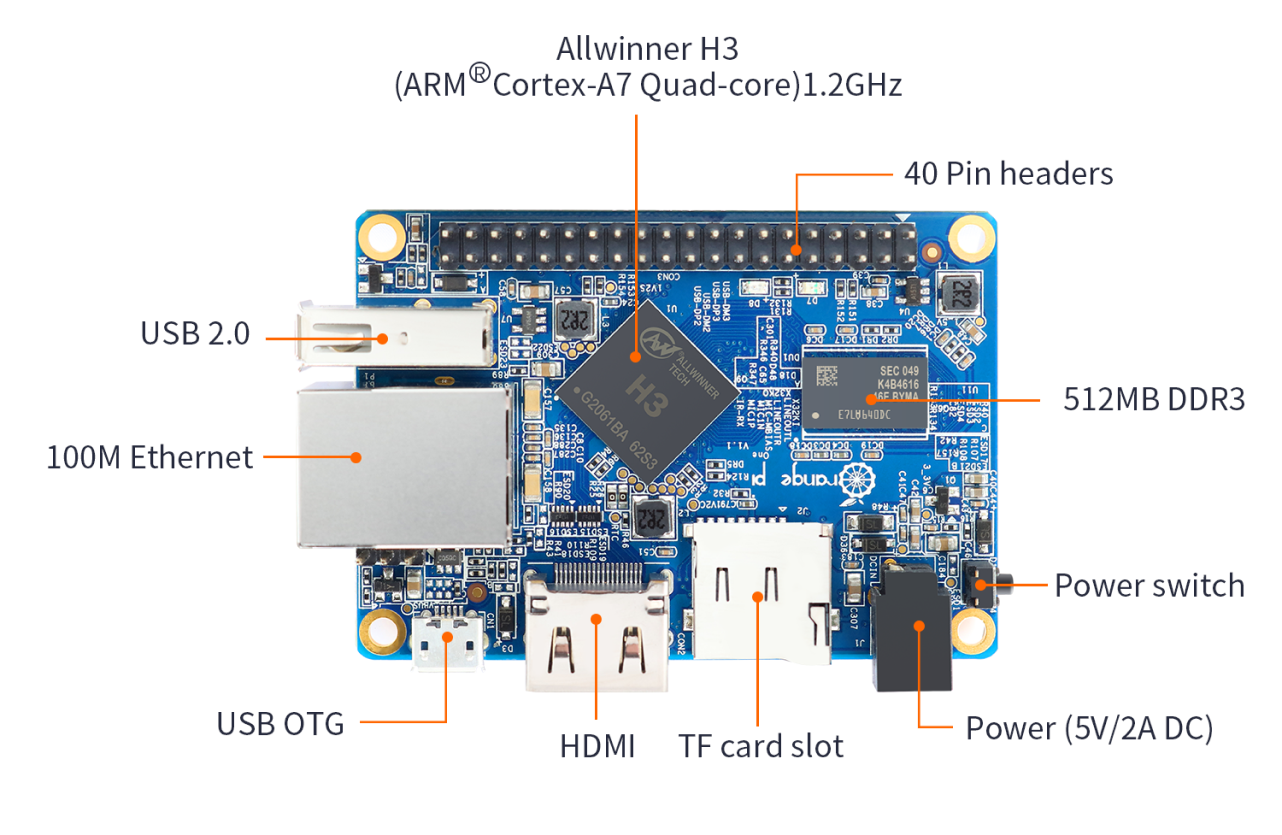

Top view

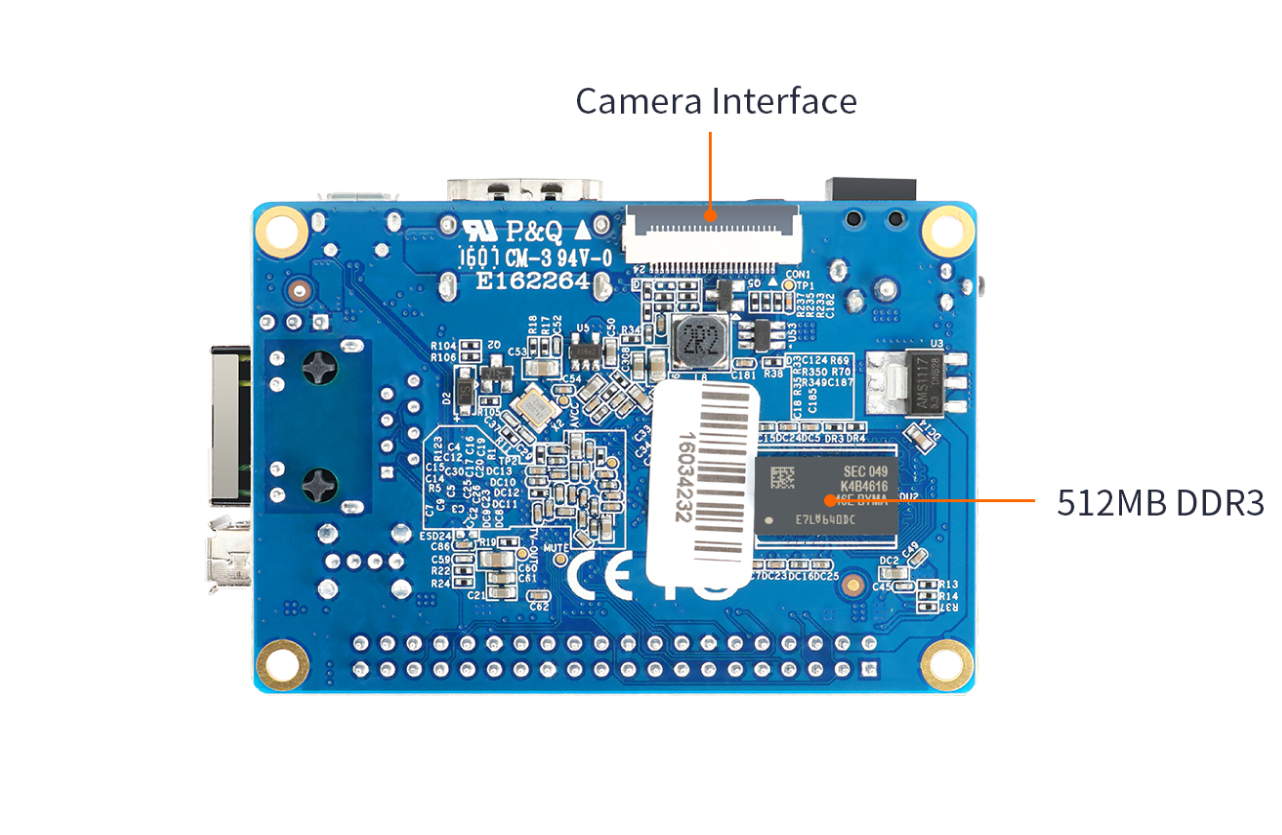

Bottom view

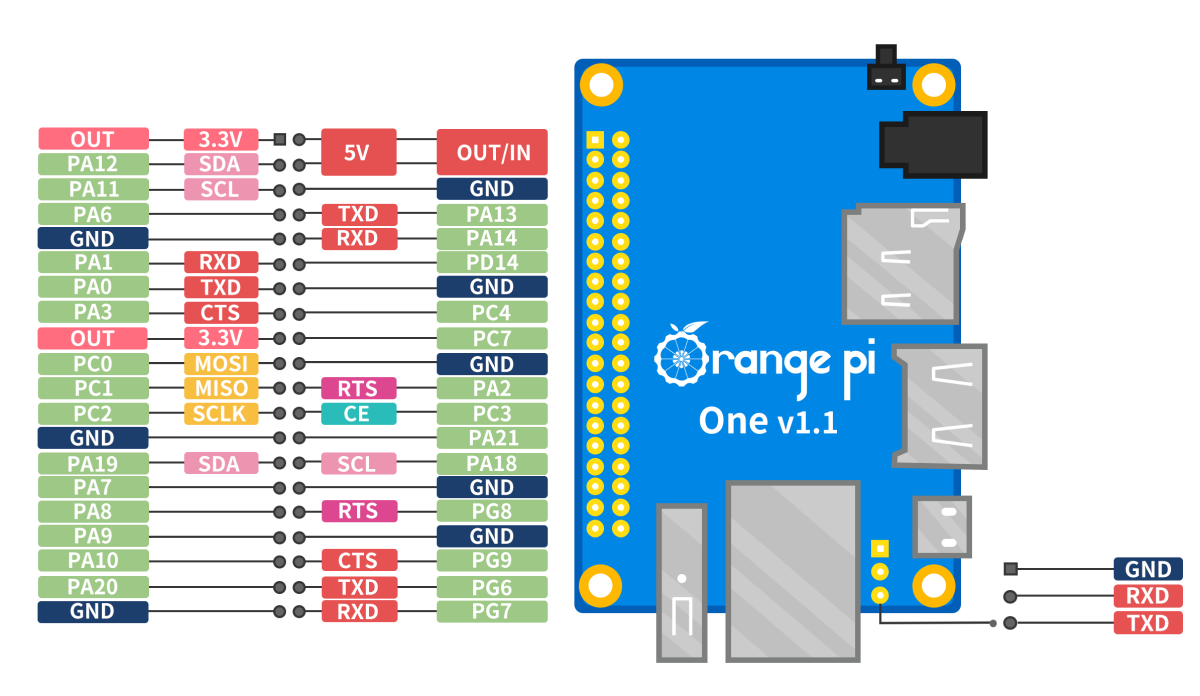

Orange Pi One v1.2 pinout diagram
-
Completely open source maker artifact
-

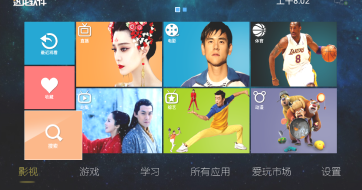

Orange Pi One runs Android
-
Orange Pi One runs Ubuntu
-
Orange Pi One runs Debian
-
Product display
-

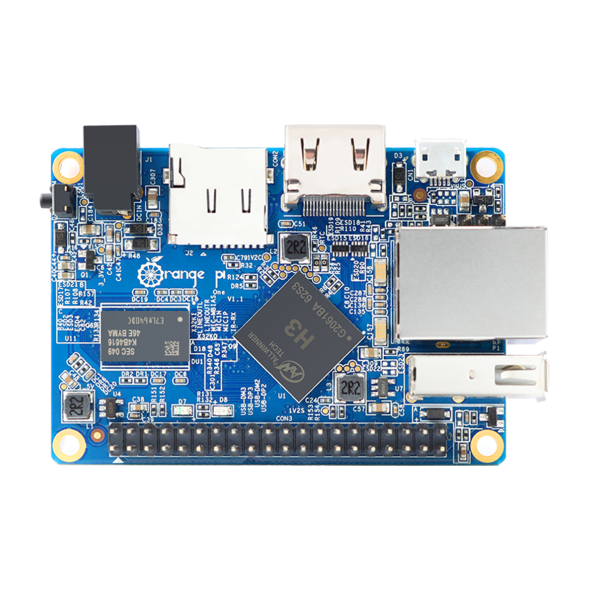

Front -
Back -

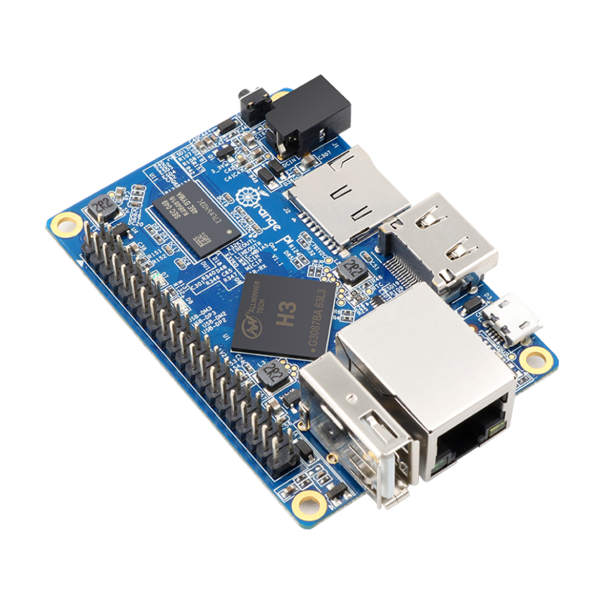

45° angle -
45° angle
What can l do with Orange Pi One?
You can use it to build-…
Pretty much anything else, because Orange Pi One is open source
