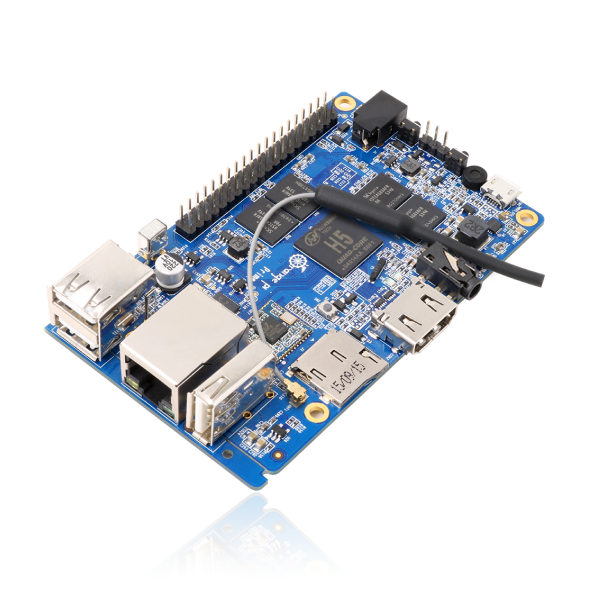

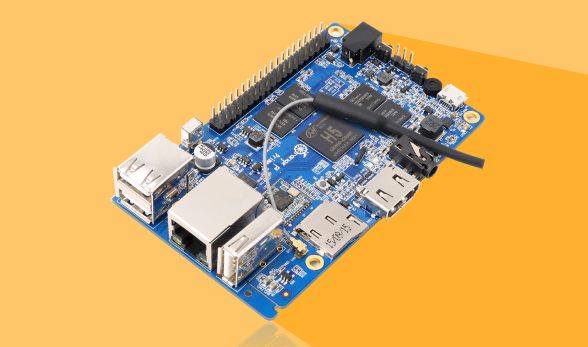

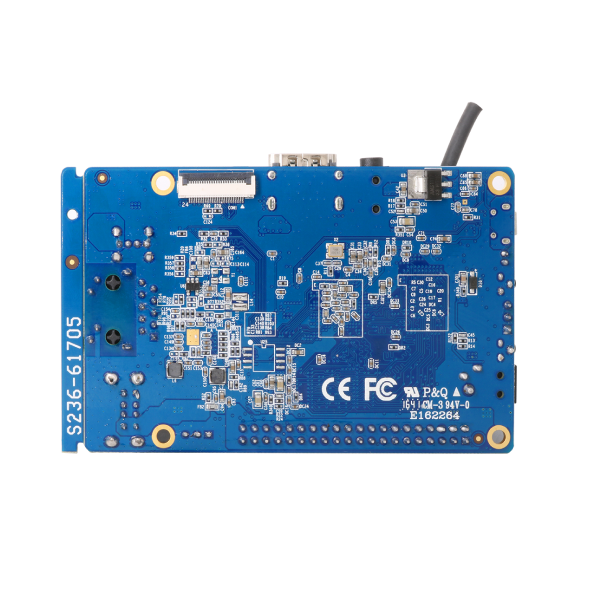

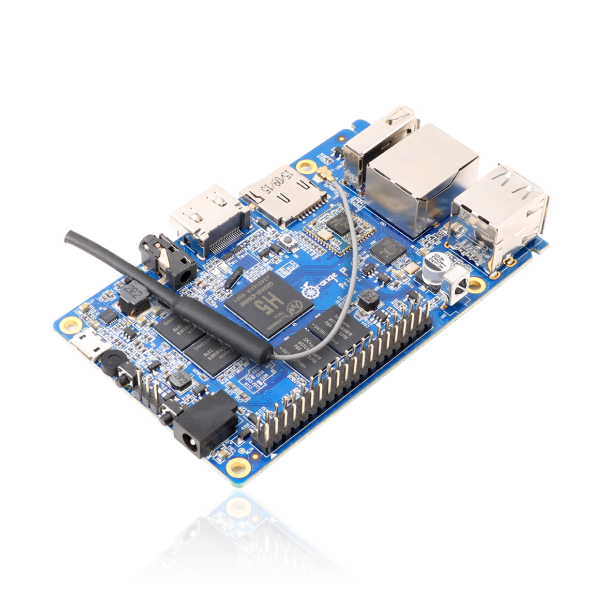

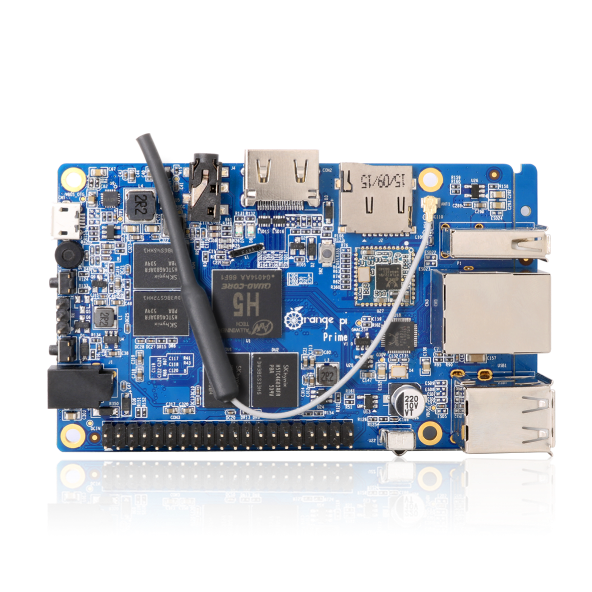

Orange Pi Prime

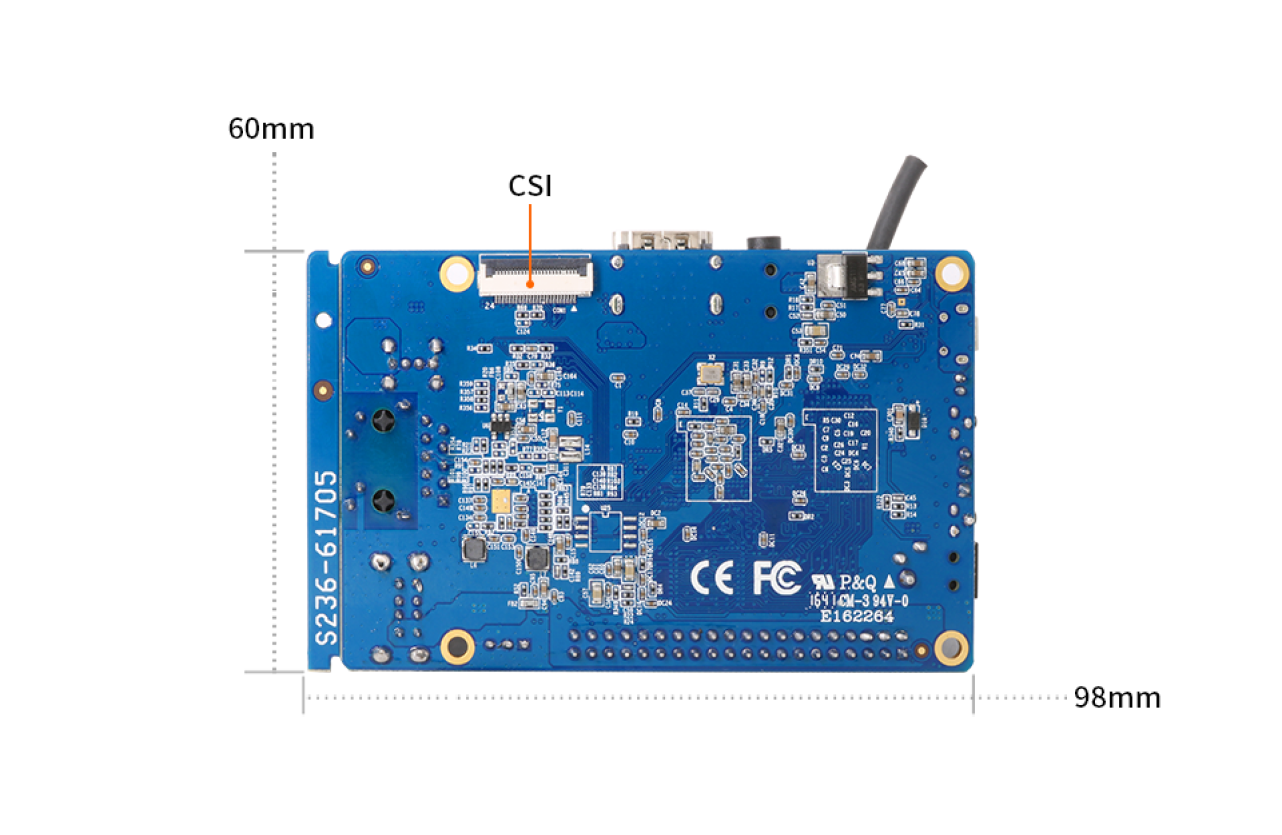

Orange Pi Prime is an open-source single-board computer with WiFi and Bluetooth4.0. It is highly compact with a dimension of 98X60mm.

Product introduction

Multiple operating systems
TF card
HDMI output
CSI camera port
Powered through DC
Cortex-A53
USB 2.0
Bluetooth
WiFi
40pin headers

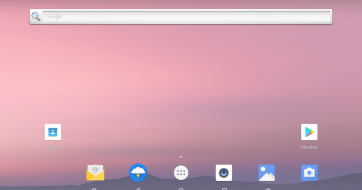

It uses the Allwinner H5 SoC with Quad-core Cortex-A53, and has 2GB DDR3 (shared with GPU). It can run Android 5.1, Ubuntu, Debian Image. Orange Pi Prime offers a range of different ports, including HDMI output, 40pin headers,USB 2.0, CSI camera port, TF card slot, etc. It is powered through DC.

Orange Pi Prime is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth 4.0

WiFi+Bluetooth 4.0，Enjoy wonderful network anytime and anywhere
Multiple Functional Interfaces

Integrates the popular HDMI, CSI camera port ,USB 3.0,USB-OTG,etc.

2GB DDR3

2GB DDR3, sufficient for running various applications, smooth & elegant.

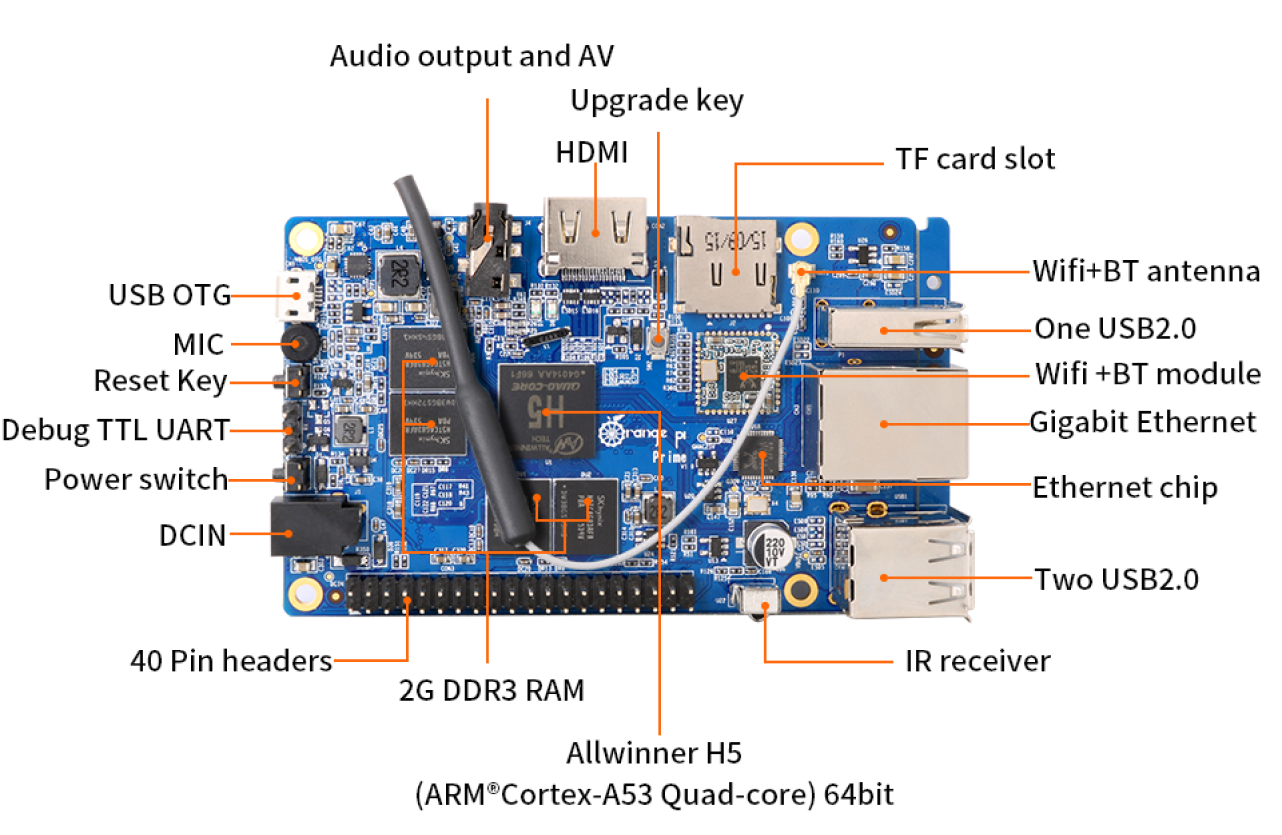

Hardware specification

CPU	H5 Quad-core Cortex-A53
GPU	• Mali450 GPU including dual Geometry Processors(GP) and quad Pixel Processors • Supports OpenGL ES 2.0 and OpenVG1.1 • 3000Mpix/sec and 163Mtri/sec • Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage
Memory (SDRAM)	2GB DDR3 (shared with GPU)
Onboard Storage	TF card (Max. 32GB) / NOR flash(optional)
Onboard Network	1000M/100M Ethernet RJ45
Onboard WiFi+BT	8723BS, IEEE 802.11 b/g/n,BT4.0
Video Input	• A CSI input connector Camera • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps
Audio Input	MIC
Video Outputs	• Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function
Audio Outputs	3.5 mm Jack, HDMI
Power Source	DC input can supply power
GPIO(1x3) pin	UART, Ground.
USB 2.0 Ports	Three USB 2.0 HOST, one USB 2.0 OTG
Buttons	Power Button(SW2), Reset Button (SW4)
Low-level peripherals	40 Pins Header
LED	Power led & Status led
Key	IR input, POWER,Reset
Supported OS	Android, Ubuntu, Debian Image
