Orange Pi Zero is an open-source single-board computer. It is highly compact with a dimension of 48X46mm. It can run Android 4.4, Ubuntu, Debian.
Product introduction
-
100 Ethernet network -
TF card Slot -
USB 2.0 -
AllWinner H2/H3 SoC -
Multiple operating systems -
26pin headers -
Powered through USB OTG -
256MB/512MB DDR3 SDRAM
Orange Pi Zero uses the AllWinner H2 SoC, and has 256MB/512MB DDR3 SDRAM(256MB version is Standard version), It integrates TF card, 100 Ethernet network, USB 2.0, 26Pin headers, etc. lt is powered through USB OTG.
Orange Pi Zero is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
| CPU | • H2 Quad-core Cortex-A7 H.265/HEVC 1080P. • H3 Quad-core Cortex-A7 H.265/HEVC 1080P |
| GPU |
• Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 256MB/512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version) |
| Onboard Storage | TF card (Max. 32GB)/ 2MB Spi Flash |
| Onboard Network | 10/100M Ethernet RJ45 POE is default off. |
| Onboard WiFi | XR819, IEEE 802.11 b/g/n |
| Audio Input | MIC(via 13 pins external board ) |
| Video Outputs | AV OUT(via 13 pins external board) |
| Power Source | USB OTG can supply power |
| USB 2.0 Ports | Only One USB 2.0 HOST, one USB 2.0 OTG |
| Low-level peripherals | • 26 Pins Header, • 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
| LED | Power led & Status led |
| Supported OS | Android, Lubuntu, Debian |

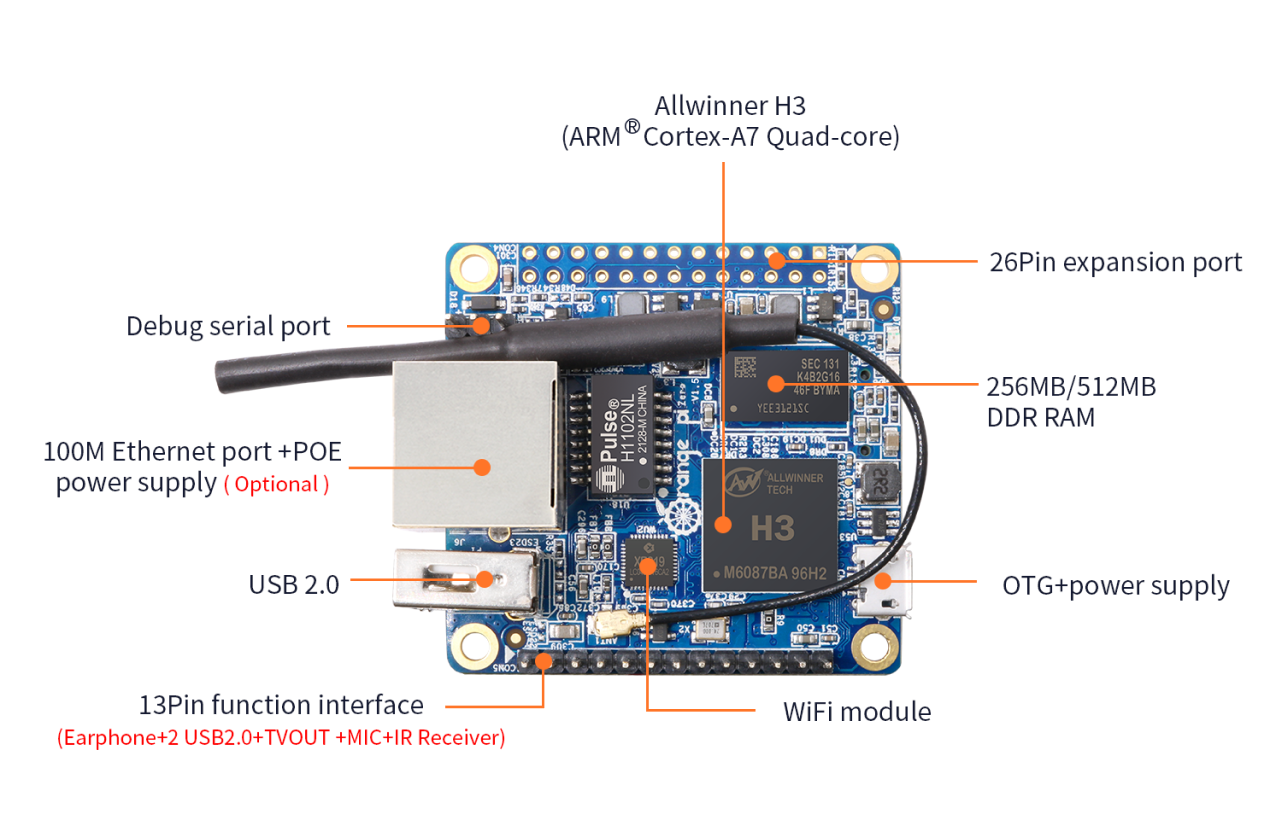

Interface definition
| Product size | 48 mm × 46mm |
| Weight | 26g |

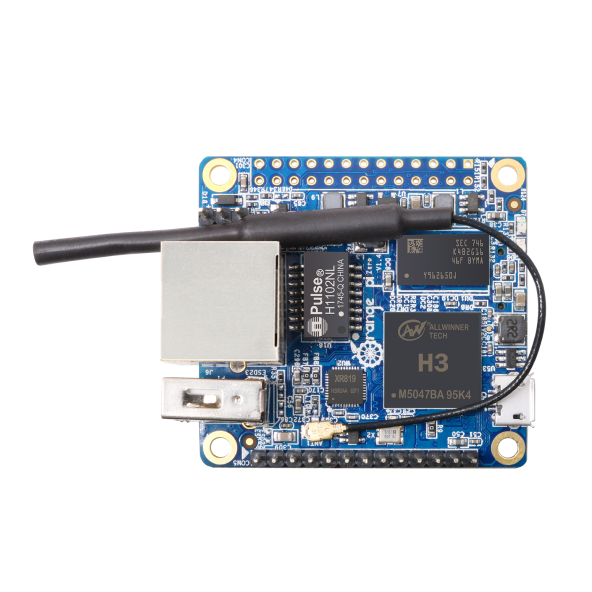

Top view

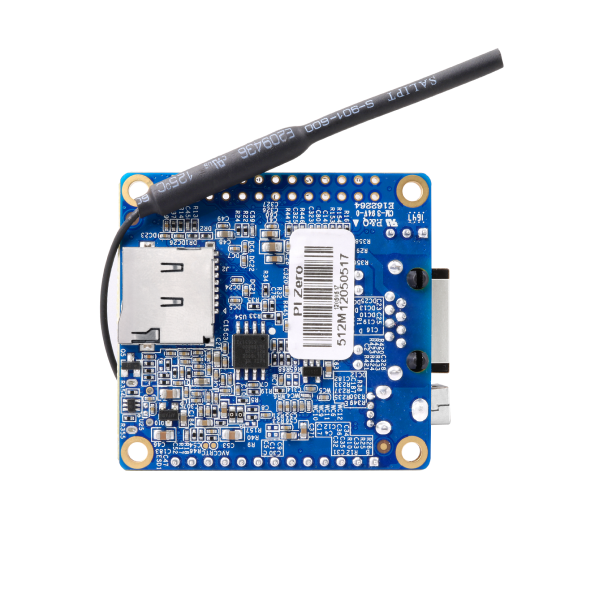

Bottom view

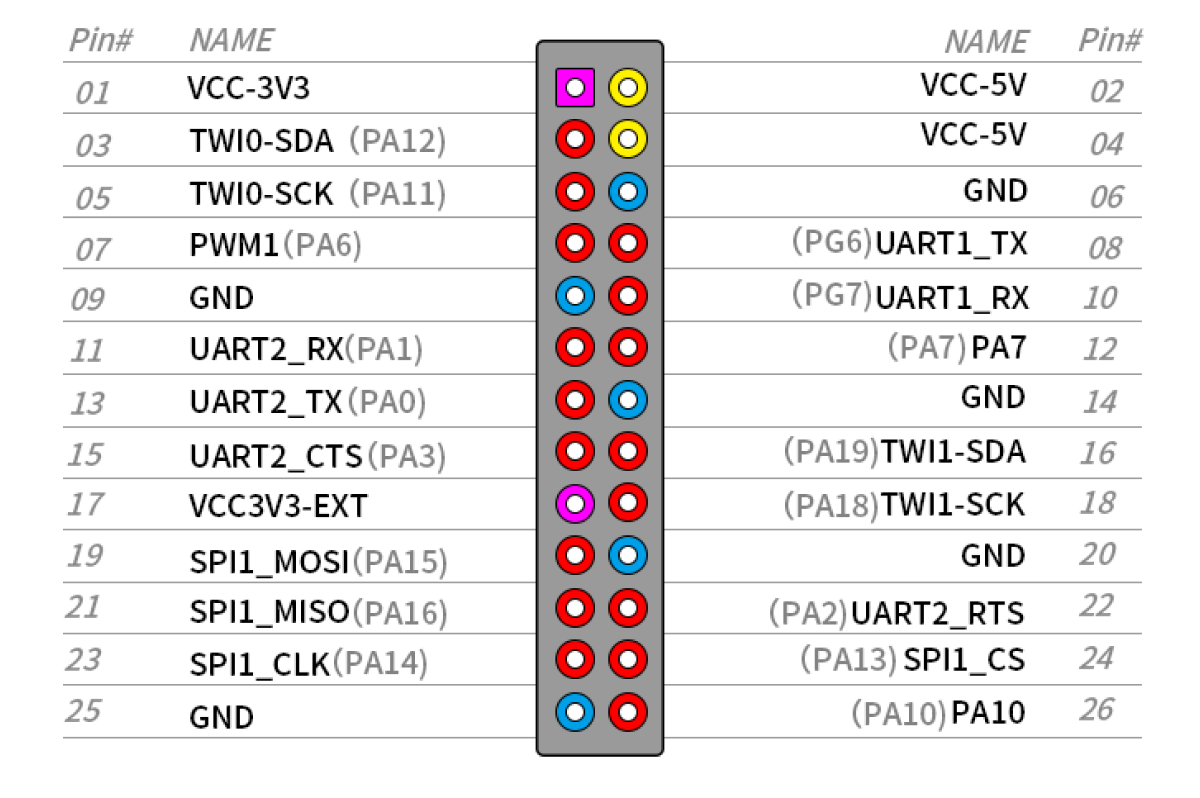

Orange Pi Zero v1.2 pinout diagram
-
Completely open source maker artifact
-
Orange Pi Zero runs Android
-
Orange Pi Zero runs Ubuntu
-
Orange Pi Zero runs Debian
-
Product display
-
Front -
Back -

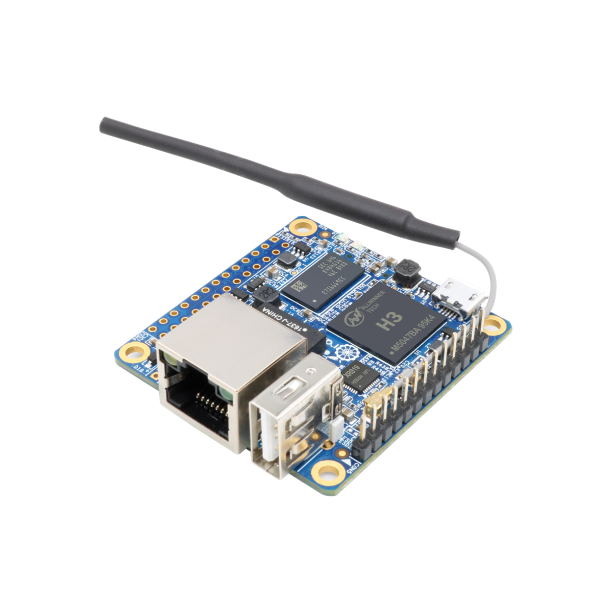

45° angle -

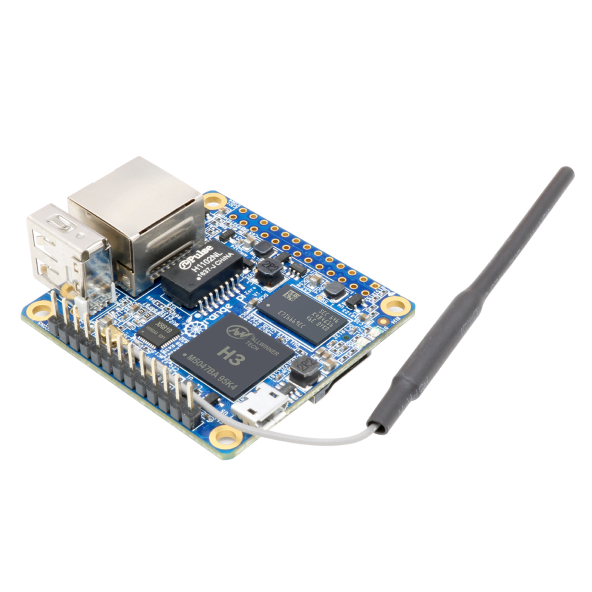

45° angle
What can l do with Orange Pi Zero?
You can use it to build-…
Pretty much anything else, because Orange Pi Zero is open source
